12V DC reduction motor 24V worm gear power-off self-locking adjustable speed forward and reverse high torque motor

Brand: XD
Model: 5D60GN-RV40-2
Origin: Mainland China
Power supply mode: DC
Motor type: 60W two-stage reduction motor with single output shaft

Voltage:12V/24V
Rotating speed selectable:

0.1 rpm
0.2 rpm
0.5 rpm
1 rpm
1.5 rpm

Youtube video: https://youtube.com/shorts/sZZCJxCnkRY?feature=share

High torque can drive 200 kilograms
Self-locking when power off, low speed
DC worm gear two-stage reduction motor

Power-off self-locking function
Can quickly protect the motor and prevent the expansion of faults
pure copper coil
Low resistance and strong power
long life
16 years of professional motor manufacturing

Turbine deceleration, self-locking after power failure
Immediate stop after power failure can protect the motor and prevent the expansion of faults.

All-copper coils are powerful
Powerful movement, stable and reliable, long service life
High torque can drive 200KG

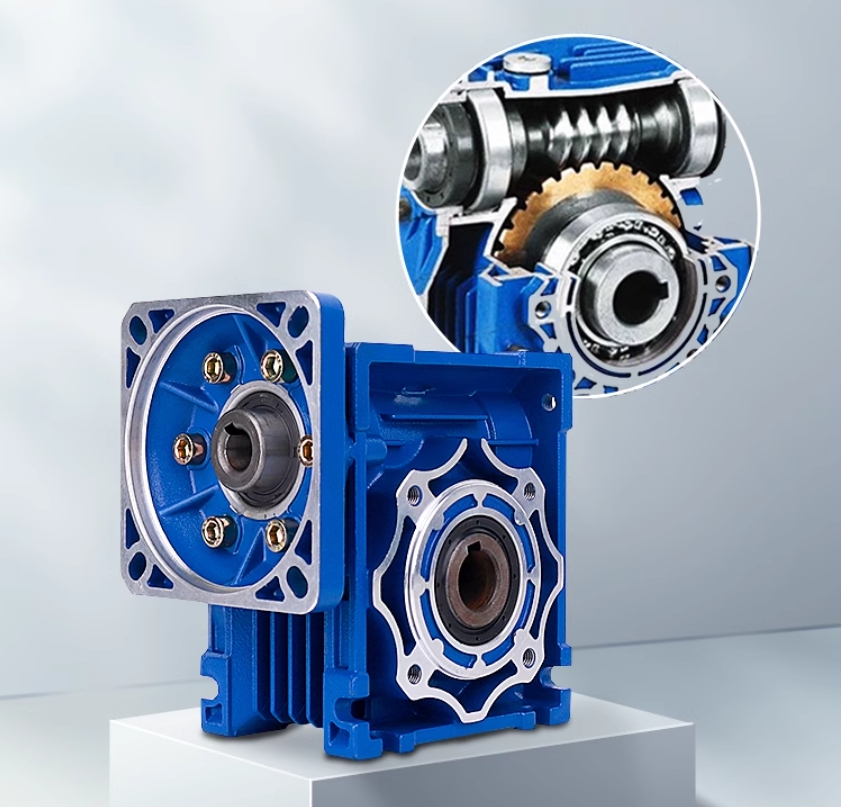

Metal gears reduce speed and increase torque
We use high-strength all-steel gears that are wear-resistant, durable and have a long life.
1000°C high temperature treatment
20 times gear strength

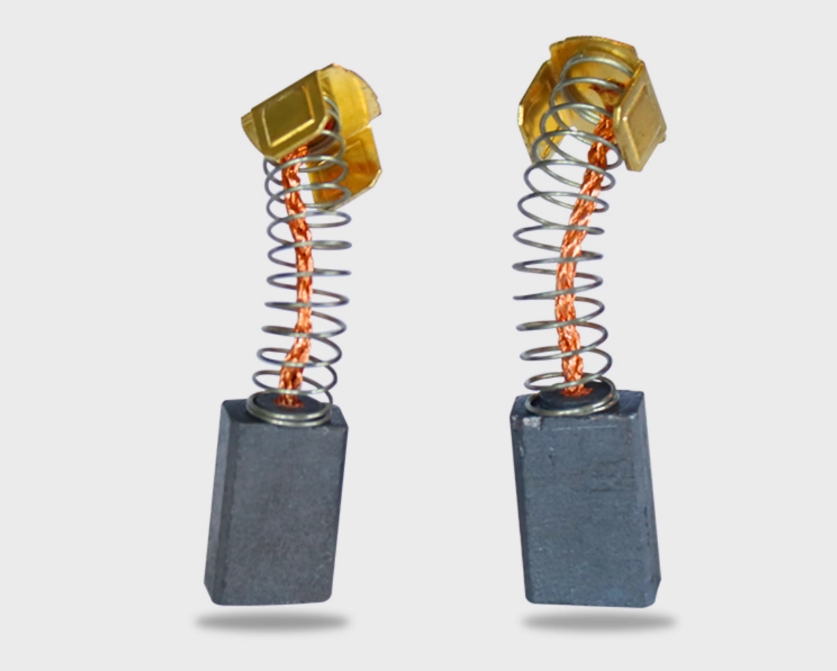

Replaceable carbon brushes with long service life
Small sparks, low energy loss, long motor life

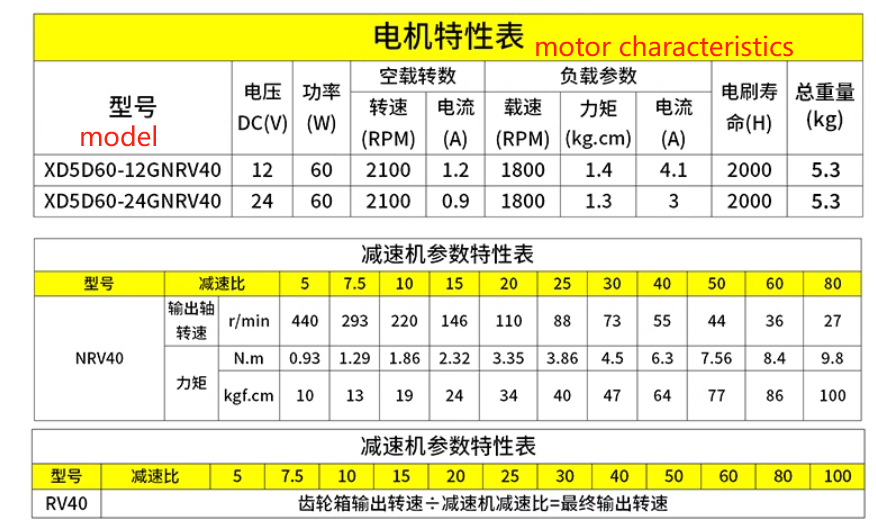

60W two-stage reuduction motor model information

Power supply mode: DC
Voltage: 24V
Model:: XD-5D60-RV40
Operating speed: low speed motor
Power: 60W
Power supply type: DC motor

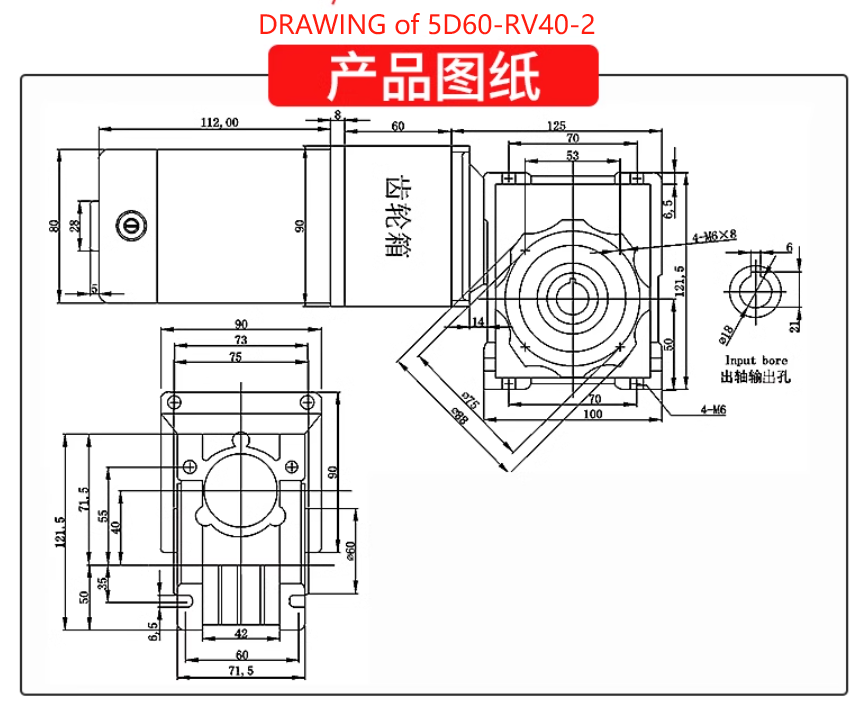

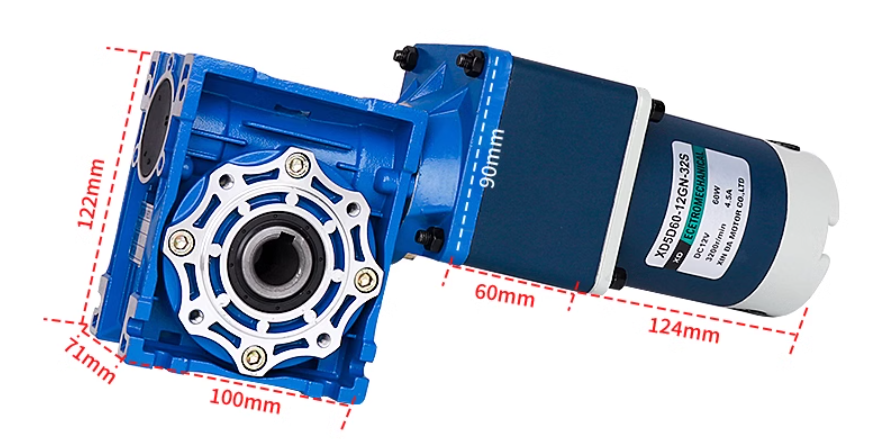

Outgoing shaft size:18*128/164mm
Motor size:90*184mm
Direction: forward and backwards
Speed regulate: regulatable
Current:3A
Speed: 1~1.5rpm

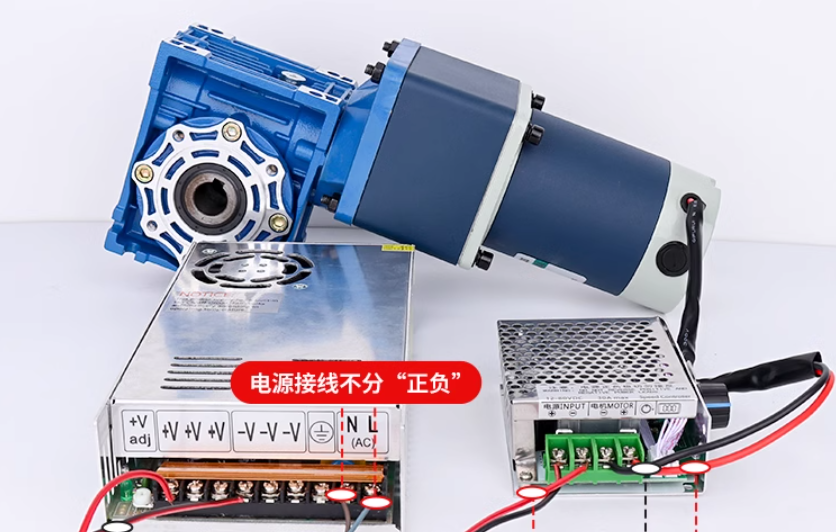

Motor wiring diagram

Products widely used in various industries
Motors are used in automation machinery, food machinery and other industries

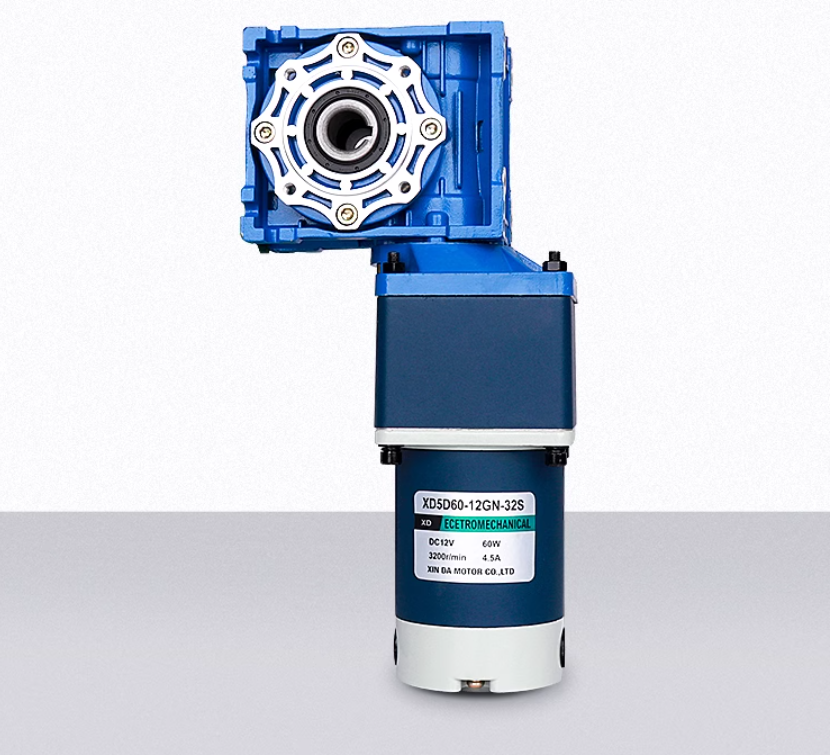

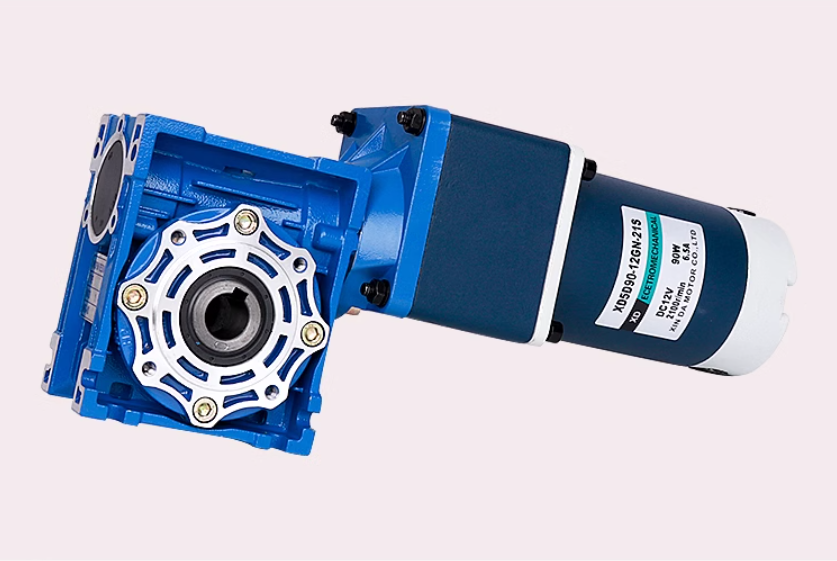

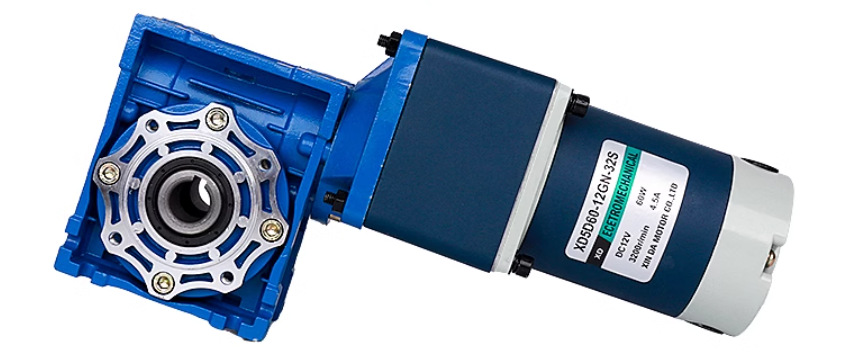

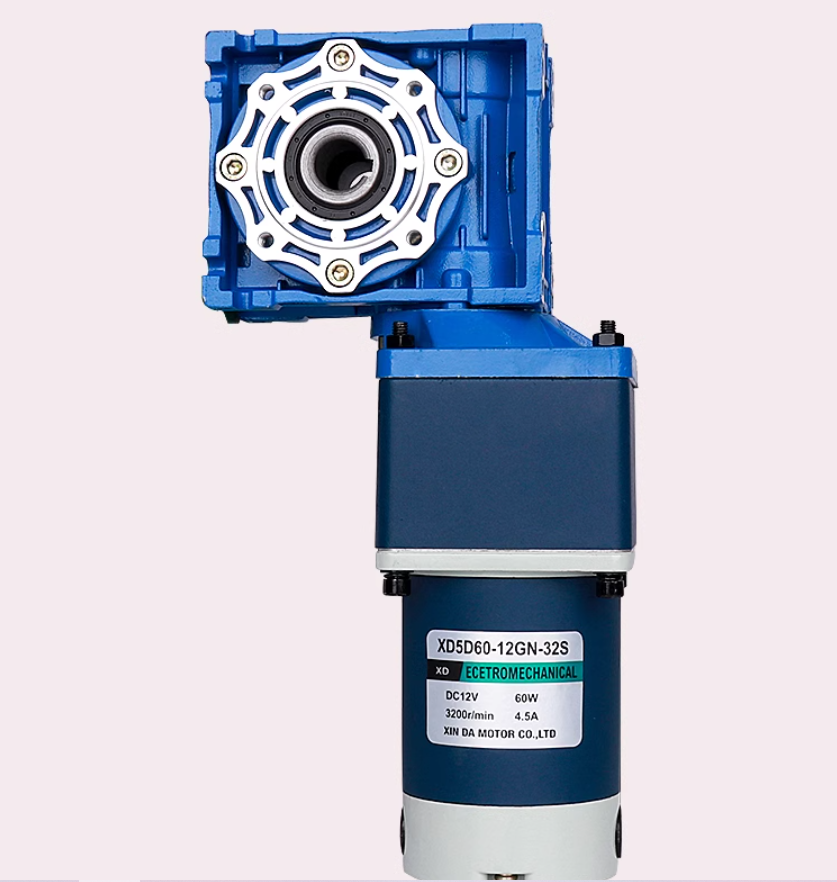

Motor pictures
