5D200GN-RV30/RV40

Date:2024-06-21   Author:XINDA MOTOR

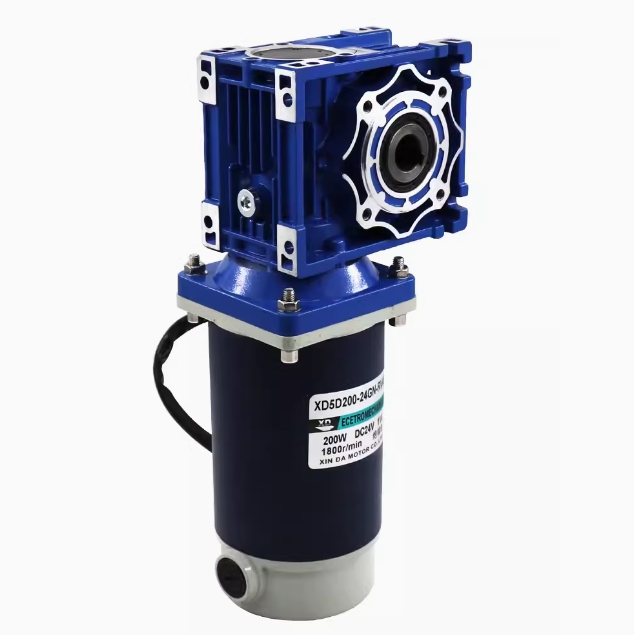

5D200GN-RV30/RV40

200W worm gear DC reduction motor 12V24v high torque forward and reverse RV30 speed regulating motor

Model selection:
-200W motor + RV30 gearbox. If you need other speeds, please contact customer service.
-200W motor + RV40 reducer. If you need other speeds, please contact customer service.


Rotating speed selection:
21 revolutions per minute
35 revolutions per minute
42 revolutions per minute
70 revolutions per minute
105 revolutions per minute
140 revolutions per minute
210 revolutions per minute
280 revolutions per minute
420 revolutions per minute
26 revolutions per minute


Voltage selection:
-12v
-24


Brand: XD
Model: 5D200GN-RV30/RV40
Origin: Chinese mainland
Power supply mode: Direct current
Power: 200W









Video of 5D200GN-RV30/RV40:

https://youtube.com/shorts/-Lk-j4fbUn4
