5D200-RV30RV40

Date：2024-09-01　　　Author：Shandong Xinda Motor Co., Ltd.

12V/24V 200W DC worm gear motor with RV30/RV40 gearbox for high torque and reversible rotation

Key attributes

Industry-specific attributes

Speed(RPM)

21 rpm-420 rpm

Continuous Current(A)

11-16A

Efficiency

Ie 3

Other attributes

Warranty

3months-1year

Place of Origin

Shandong, China

Brand Name

Model Number

5D200-RV30/40

Use

BOAT, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME

Type

Worm gear motor

Torque

40Nm

Construction

Permanent Magnet

Commutation

Brush

Product Name

Worm gear motor

Application

Automatic Product

Rated Voltage

DC 12V/24V

Power

200W

Motor Speed

1800rpm/3000rpm

Keywords

High Torque Gear Motor

Reduction gearbox

RV30/RV40

output speed

21/26/35/42/70/105/140/210/280/420rpm

Motor type

PMDC Brushed Motor

Noise

Low Noice

Packaging and delivery

Selling Units:

Single item

Single package size:

30X15X9 cm

Single gross weight:

5.000 kg

Product descriptions from the supplier

200W DC Worm Gear Motor

Optional speed: 21-420 rpm,
Torque: 4.45-40Nm,
Voltage: DC 12V/24V
Power: 200W
Weight: approximately 5-6kg
Can provide other power motors and reasonable logistics solutions
Please contact us for detailed information.

DC worm gear reducer motor 200W.

Motor size: 90 * 167mm, motor output shaft: 12 * 35mm, paired with RV series gearbox. Currently, RV30 and RV40 gearbox models are available, with a reduction ratio of 5K/7.5K/10K/20K/25K/30K/40K/50K/60K/80K/100K; The dimensions of the motor and gearbox can refer to the details below. These models do not meet your requirements and can be customized by contacting us;
The biggest characteristics of this motor are power outage self-locking, high temperature resistance, low resistance, low noise, and long service life;The motor adopts high-quality magnetic tiles, which have strong and stable magnetic force and stable performance;
Scope of use: Packaging machines, industrial robots, medical equipment, textile machinery, printing machines, vending machines, electric lifting equipment and other automated machinery.

Motor parameters
Motor model	power (W)	voltage (V)	No load speed (r/min)	No load current (A)	Load speed (r/min)	Load current (A)	Load torque (kgf.cm)	Motor weight (KG)
XD5D200- 12A121S	200	DC12V	2100	1.75	1800	14	7.1	3.2
XD5D200-24A121S	200	DC24V	2100	1.25	1800	11	7.1	3.2

Gearbox model	Reduction ratio (K)	5	7.5	10	15	20	25
RV30	Output speed (r/min)	360	240	180	120	90	72
	Torque（N.m）	4.45	5.85	8.35	9.85	14.6	18
	Torque（kgf.cm）	45.39	59.67	85.17	100.4	148.9	183.6

Gearboxmodel	Reduction ratio (K)	30	40	50	60	80
RV30	Output speed (r/min)	60	45	36	30	23
	Torque（N.m）	25.4	30.2	35.4	38.5	40
	Torque（kgf.cm）	259	308	361	400	400

Gearbox model	Reduction ratio (K)	5	7.5	10	15	20	25
RV40	Output speed (r/min)	360	240	180	120	90	72
	Torque（N.m）	4.45	5.85	8.35	9.85	14.6	18
	Torque（kgf.cm）	45.39	59.67	85.17	100.4	148.9	183.6

Gearboxmodel	Reduction ratio (K)	30	40	50	60	80	100
RV40	Output speed (r/min)	60	45	36	30	23	18
	Torque（N.m）	25.4	30.2	35.4	38.5	40	40
	Torque（kgf.cm）	259	308	361	400	400	400

Pure copper coil

Strong conductivity, good thermal conductivity, heat resistance, low magnetic interference, stable operation, and long service
life.

2200GS magnetic tile

High magnetic field strength, improved operational efficiency, longer service life, and greater torque.

High quality carbon brush

Low contact resistance, reduced power consumption, improved motor efficiency, reduced wear and sound, good thermal stability, and beneficial for motors working in high-temperature environments.

Motor usage range

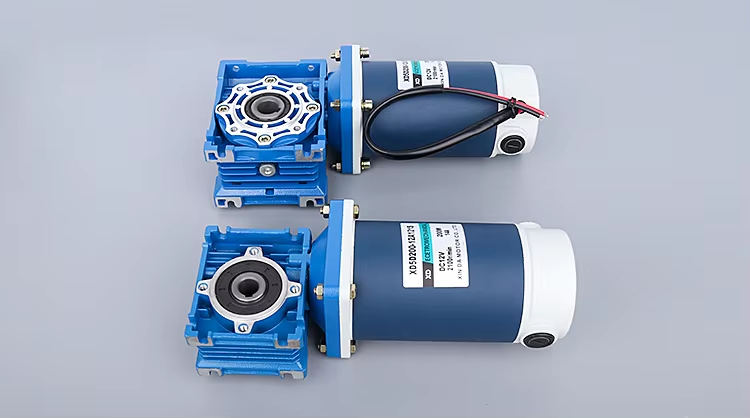

Product real shot display

FAQ：

1. Are you a trading company or a manufacturer?
We are a factory that has been specializing in motor manufacturing and production for 16 years.

2. I couldn't find a suitable electric motor on your website. Can you customize an electric motor for me?
Sure, we can customize suitable electric motors according to customer requirements.

3. Do you have a certificate for your motor?
Yes, we have CE/ISO/ROHS/and multiple patents. If you have any other certificate requirements, we can apply for them for you.

How is your quality control?
We have professional quality inspectors to inspect every motor production process; After the product assembly is completed, use
the machine to test the performance again. For example, hardness testing, image testing, smoke testing, lifespan testing,
temperature testing, noise testing, etc.

5. What services can we provide?
We can create Ali credit insurance orders online for our new customers, which can be paid online using Master Card, Visa, or PayPal or TT.
