5IK60RGN-C
Date:2024-10-02 Author:XINDA MOTOR
5IK60RGN C Xinda 220V AC gear reduction motor 60W #motors #chinamotor #machine #acmotor #gearmotor

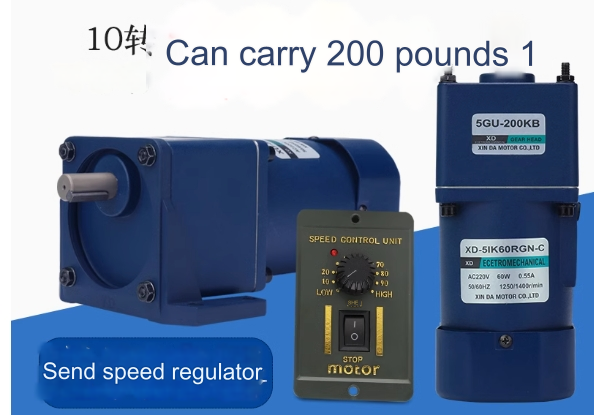

5IK60RGN-C Xinda 220V AC gear reduction motor 60W with speed regulator forward and reverse electric small slow motor
Speed:
500 revolutions per minute
300 revolutions per minute
200 revolutions per minute
100 revolutions per minute
60 revolutions per minute
50 revolutions per minute
30 revolutions per minute
20 revolutions per minute
10 revolutions per minute
Other speeds
Function:
ordinary
With brake
Parameter information
brand
XD
model
5IK60RGN-C
Origin
Chinese mainland
Power supply mode
Alternating current
Voltage
220V
model:
5IK60RGN-C
Operation speed
Low speed motor
Function Type:
AC gear motor
Power phases
Single-phase motor
Power type:
AC motor
Tips
1
The installation structure of AC reduction motor is different, so the selection is different. It is recommended to contact online customer service for recommendations.
2: The faster the speed, the better! Different speeds have different output torques.
The higher the speed, the smaller the force, and the smaller the weight driven.
The smaller the speed, the greater the force, and the greater the weight driven.
3. As long as the motor size, voltage, speed, and torque can meet your requirements. This product can be used in any mechanical automation equipment.
Main uses: vending machines, smart homes, office equipment, home automation equipment, production automation equipment, medical machinery, game machinery, smart window openers, conveying machinery, textile machinery, printing machinery, food machinery and other machinery and equipment.
Professional focus, excellence

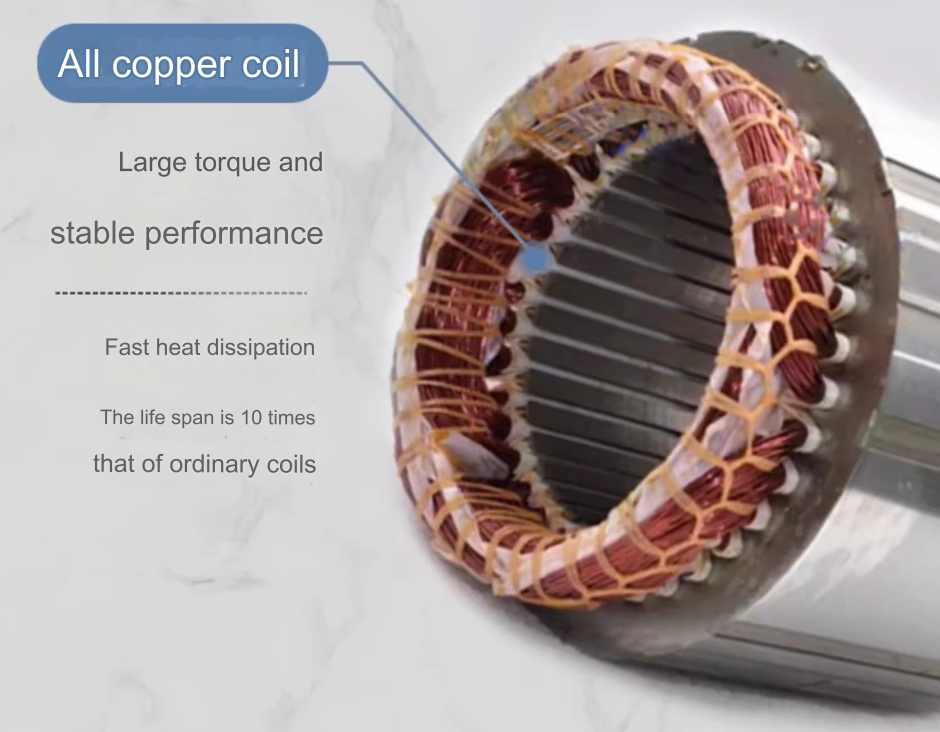

All copper coil, low noise, high torque
Precision manufacturing

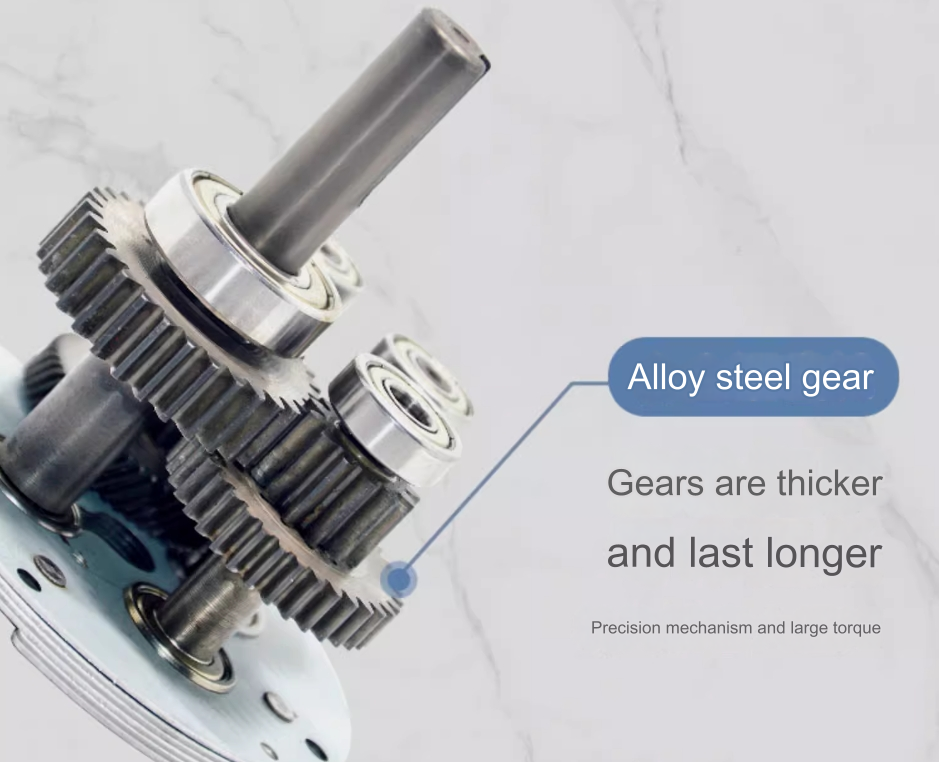

All copper coils, alloy gears
Stable performance, longer life, durable
Note:

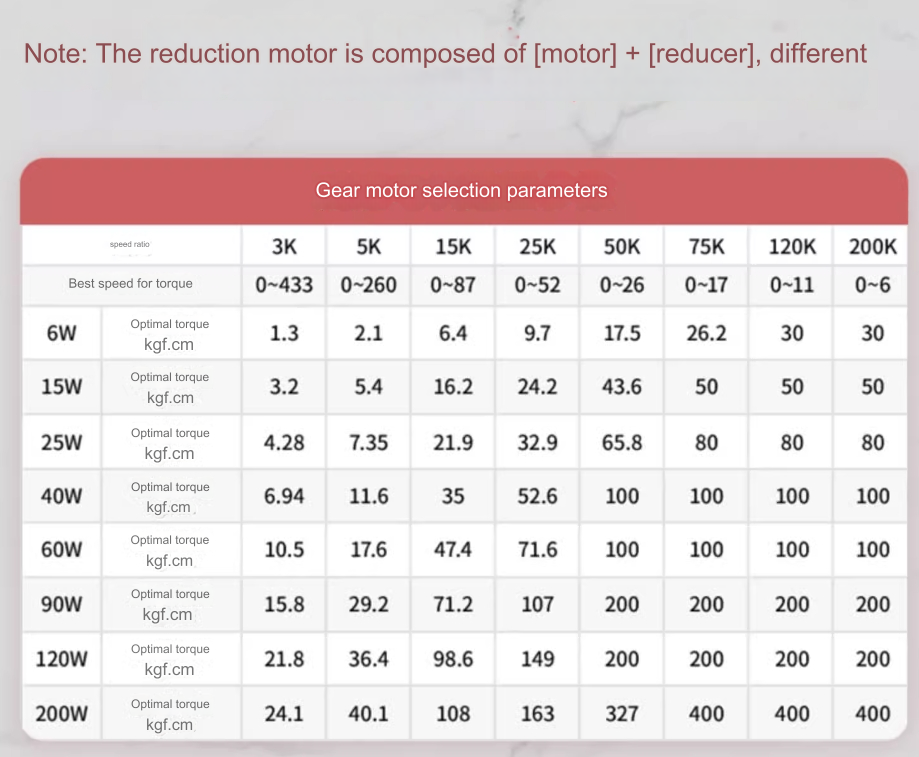

The reduction motor is composed of [motor] + [reducer]. Different speed ratios can achieve different speed adjustment ranges, and their strengths are also different.
*Different installation structures and models require different selections. It is recommended that you contact online sales for recommendations.
*The above range belongs to the light load safety speed range, that is, within this range, the motor can run for a long time.
Light load safety speed range: full speed ~ 50% of full speed; heavy load safety speed range: full speed ~ 70% of full speed
*When the reduction box decelerates, the lower the speed, the greater the force. When the speed regulator adjusts the speed, the higher the speed, the greater the force.
Schematic diagram of speed regulator connected to motor

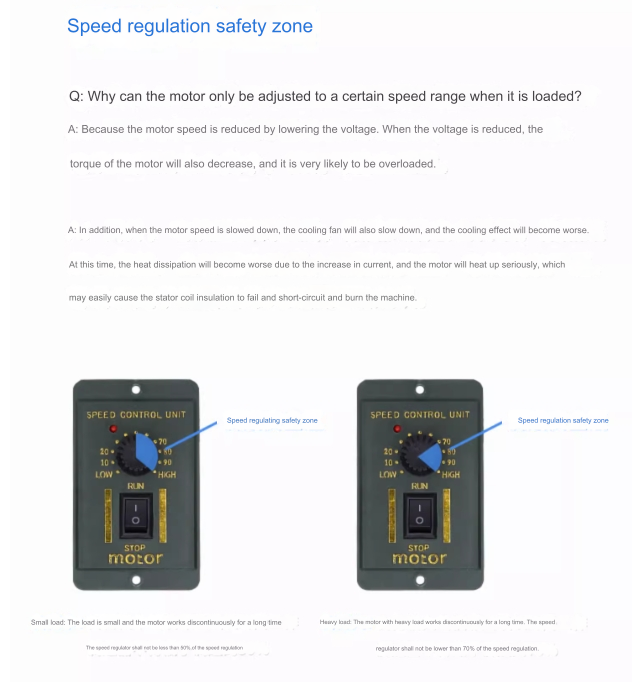

Speed regulation safety range
Q: Why can the speed of the motor be slowed down only within a certain range after it is loaded?A: Because the motor is slowed down by reducing the voltage. After the voltage is reduced, the torque of the motor will also become smaller, and it is very likely to be overloaded.
A: In addition, after the motor speed is slowed down, the cooling fan will also turn slowly, and the cooling effect will become worse. At this time, the heat dissipation will become worse due to the increase in current, and the motor will heat up seriously, which is easy to cause the stator coil insulation to fail and short-circuit and burn the machine.

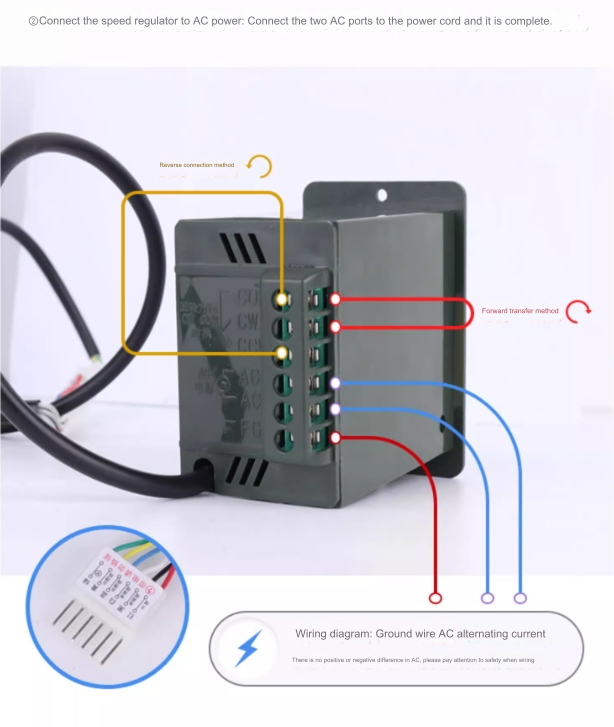

②Connect the speed regulator to AC power: Connect the two AC ports to the power cord and it is complete.
