XD5D120-12A121SRV40
Date:2025-03-26 Author:Shandong Xinda Motor Co., Ltd.

RV gear reduction DC motor delivery to U.S. client
Voltage:12VDC
Power: 120W
Motor size: 90*167mm
Motor Speed: 1800rpm/2100rpm
Current: 13A
Motor out shaft size:12*38mm
Turning direction: CW/CCW

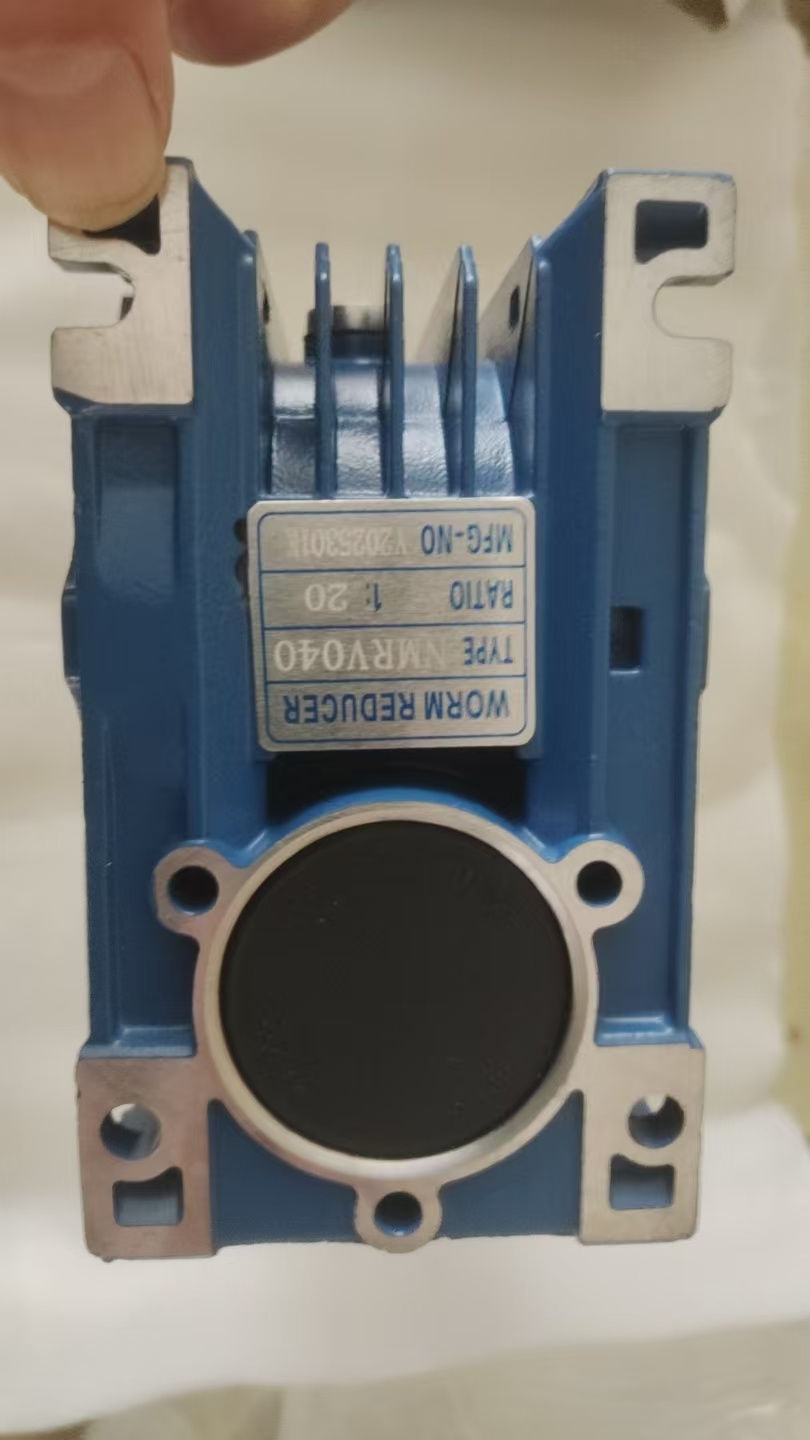

Gearbox TYPE – NMRV
GEARBOX SIZE – 40
GEARBOX OUTPUT BORE – 18 mm
GEAR RATIO – 20:1
