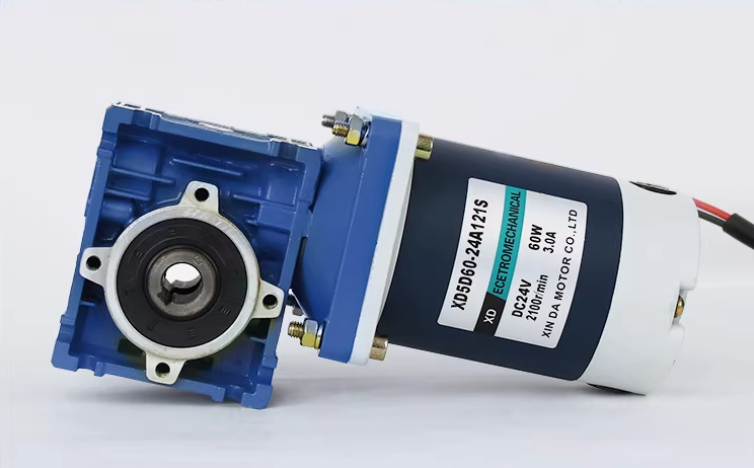

RV worm gear reducer motor RV30RV40 DC 12V24V lowslow speed right angle 90° gearbox

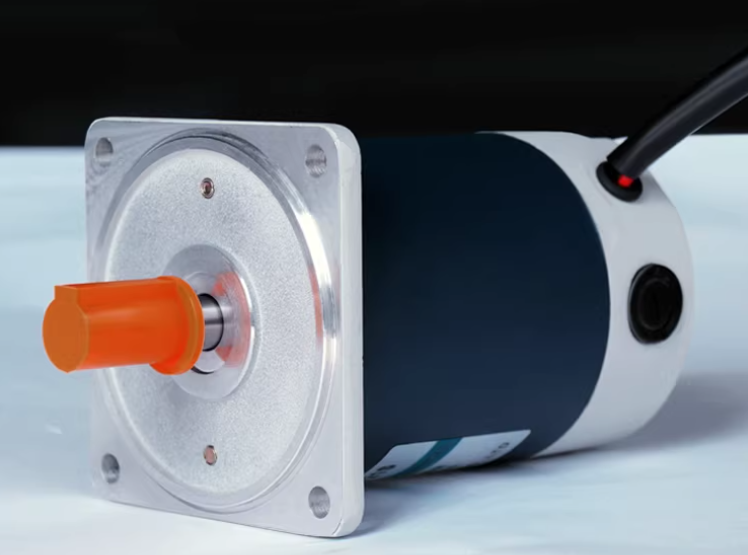

Power selection:
60W motor

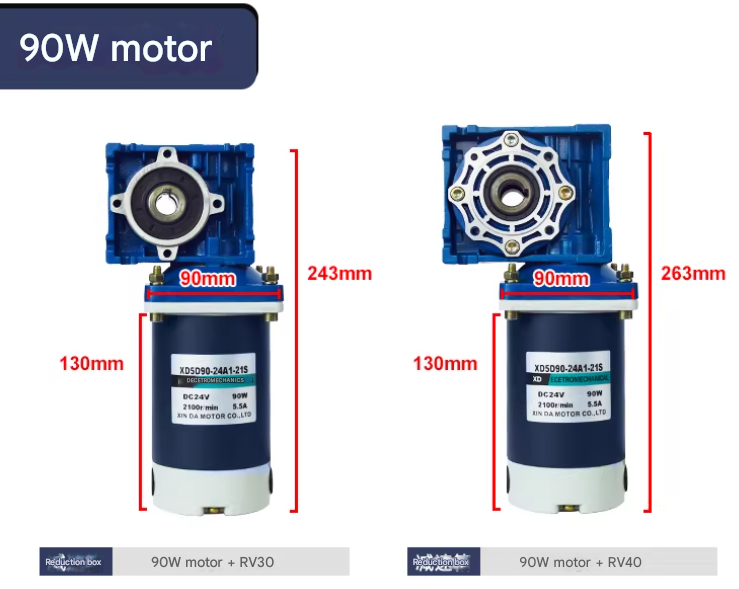

90W motor

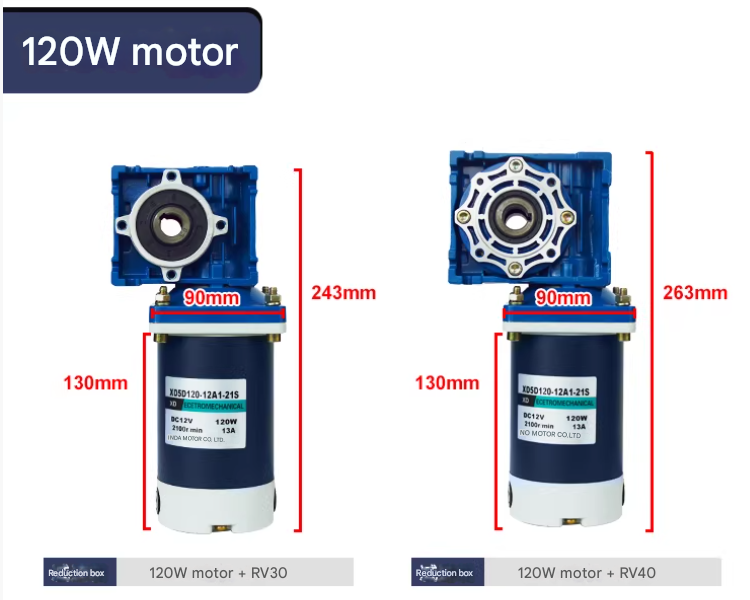

120W motor

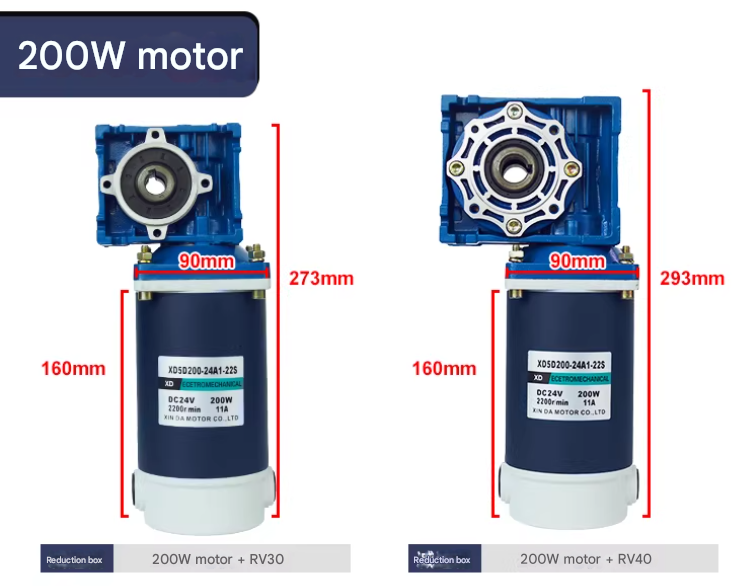

200W motor

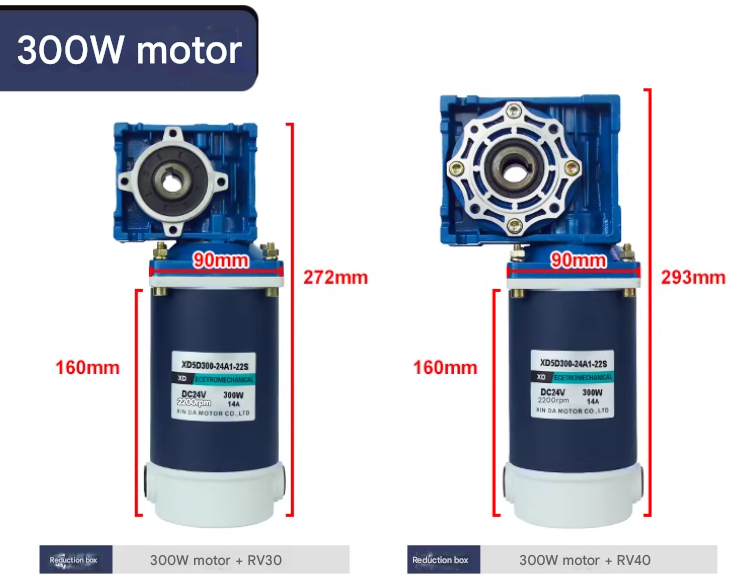

300W motor

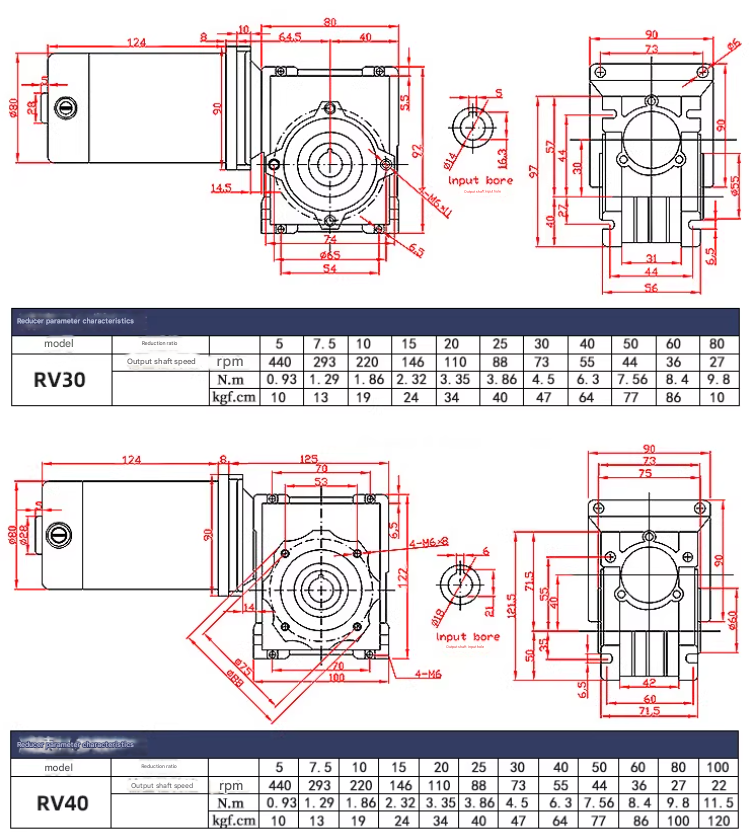

Motor speed ratio selection:
18 rpm, gear ratio 100K
30 rpm, gear ratio 60K
36 rpm, gear ratio 50K
60 rpm, gear ratio 30K
100 rpm gear ratio 20K
120 rpm, gear ratio 15K
180 rpm, gear ratio 10K
240 rpm, gear ratio 7.5K
360 RPM speed ratio 5K

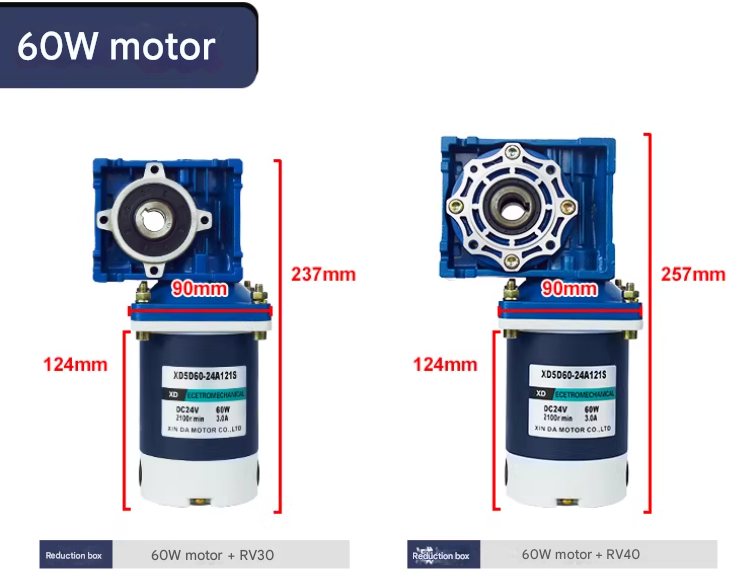

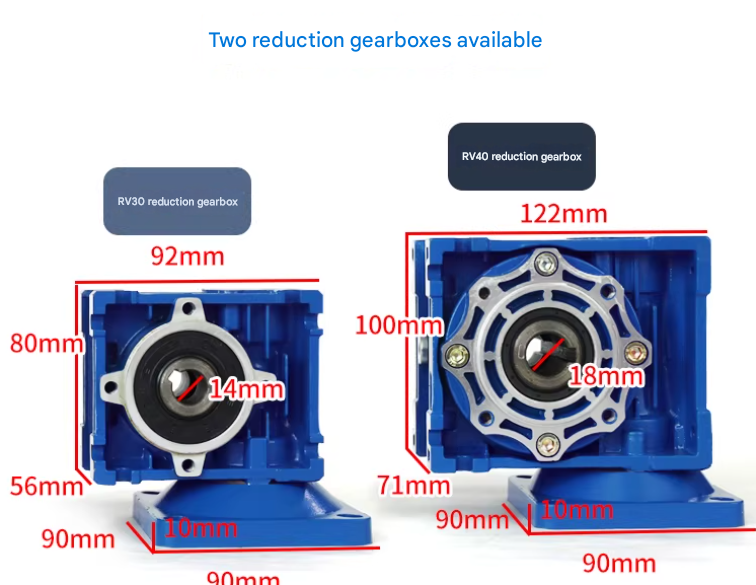

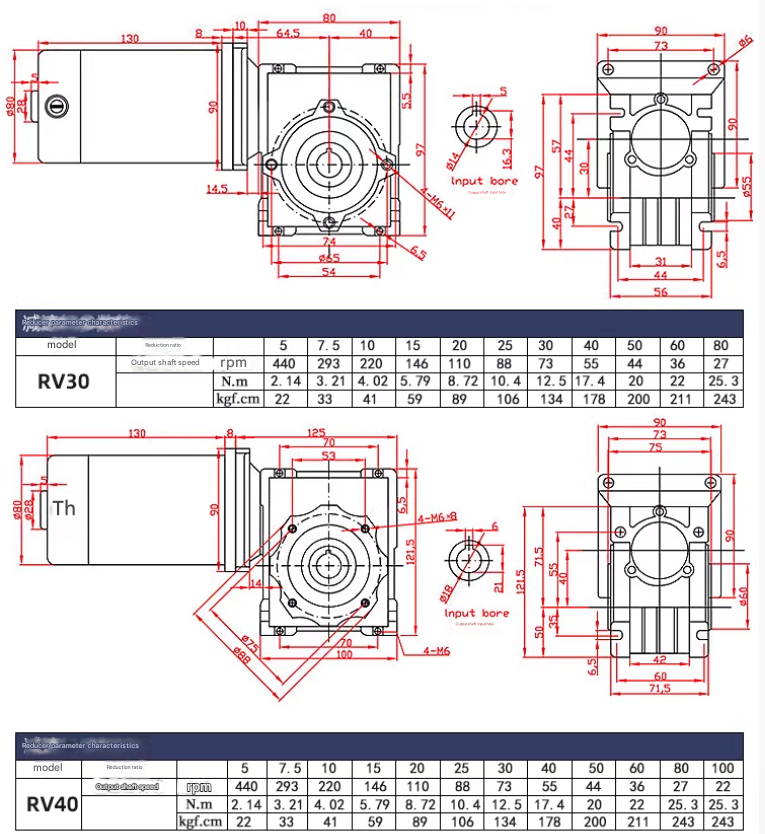

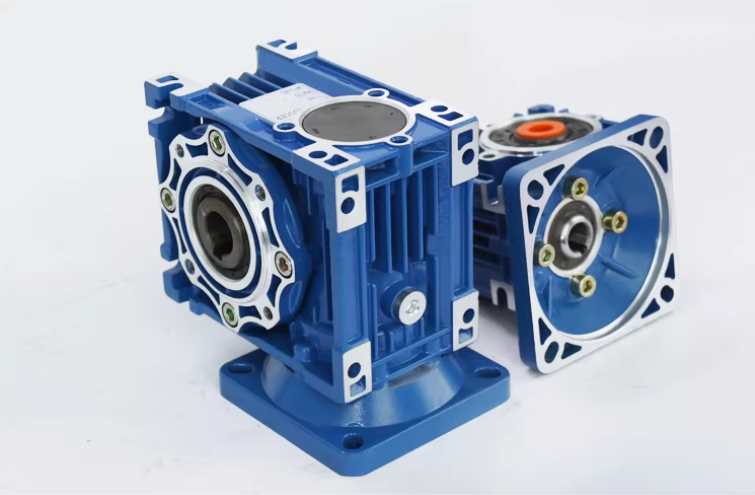

Gearbox selection:

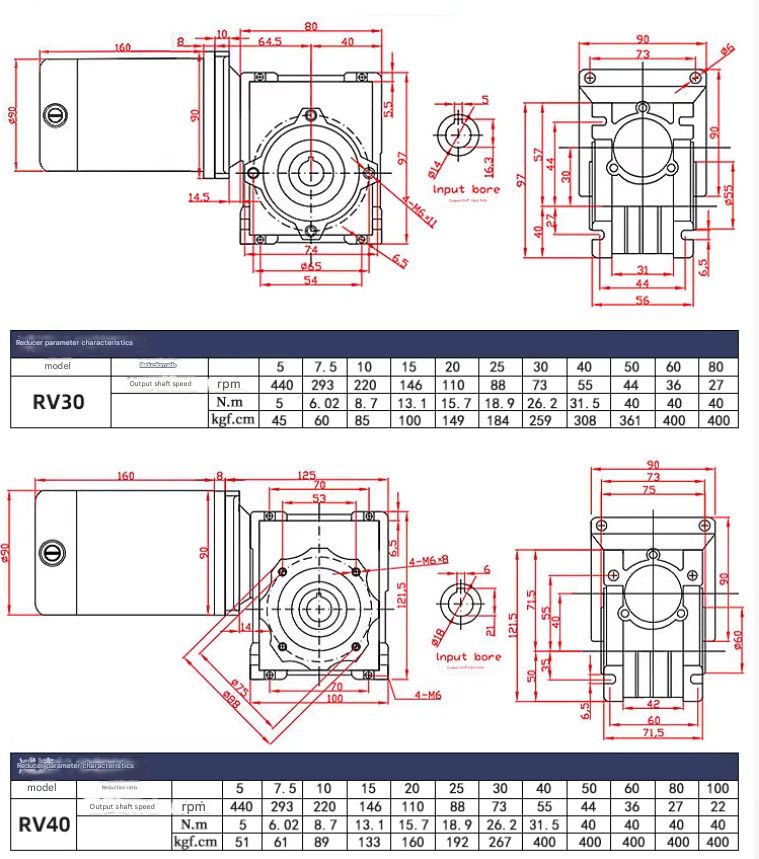

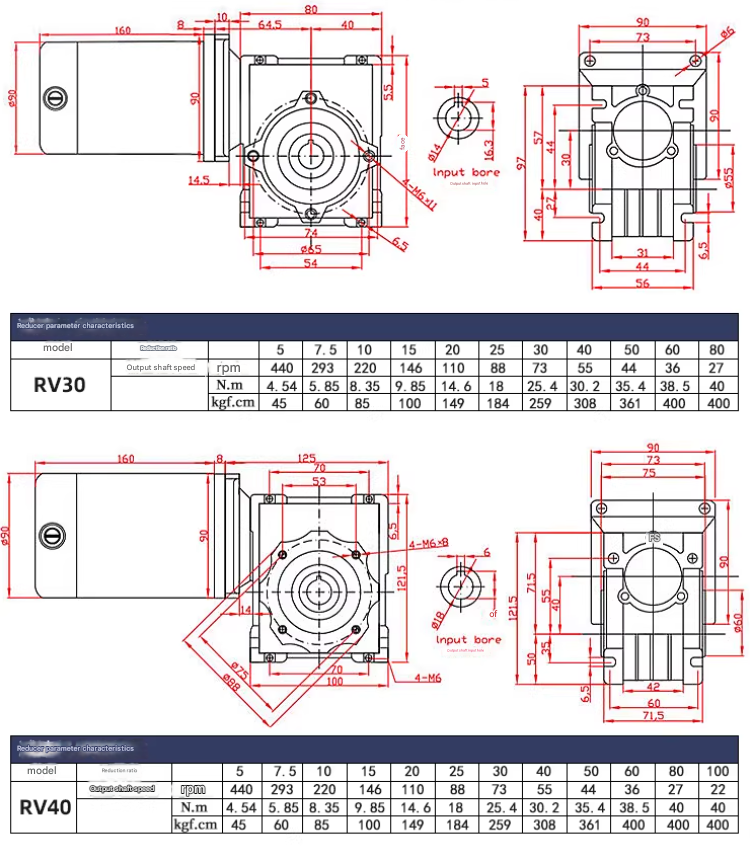

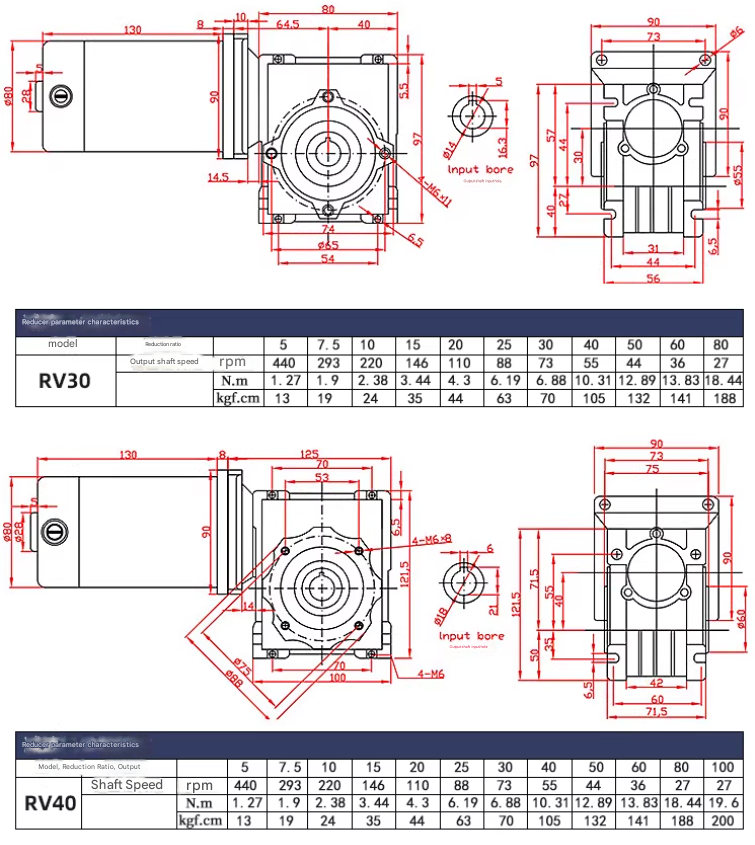

RV30
RV40


Voltage selection:
12V DC
24V DC
#electricmotor #gearedmotor #wormgear #dcgearmotor #gearmotor

Parameter information

brand
XD
model
Turbo Gear Motor
Origin
Chinese mainland
Rated voltage
24V
Applicable Scenarios
Universal type
Power supply method
DC power supply
sort by model
60W motor, 90W motor, 120W motor, 200W motor, 300W motor
Voltage
12V 24V
power
60W 90W 120W 200W 300W
property
Worm Gear Motor
Output speed
0-21-420 turns
torque
Maximum torque 800 catties
