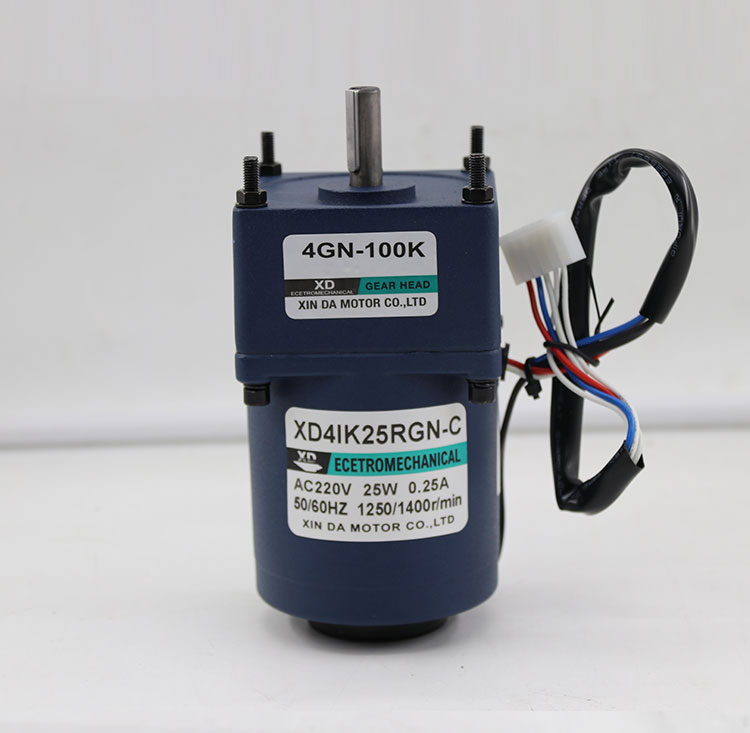

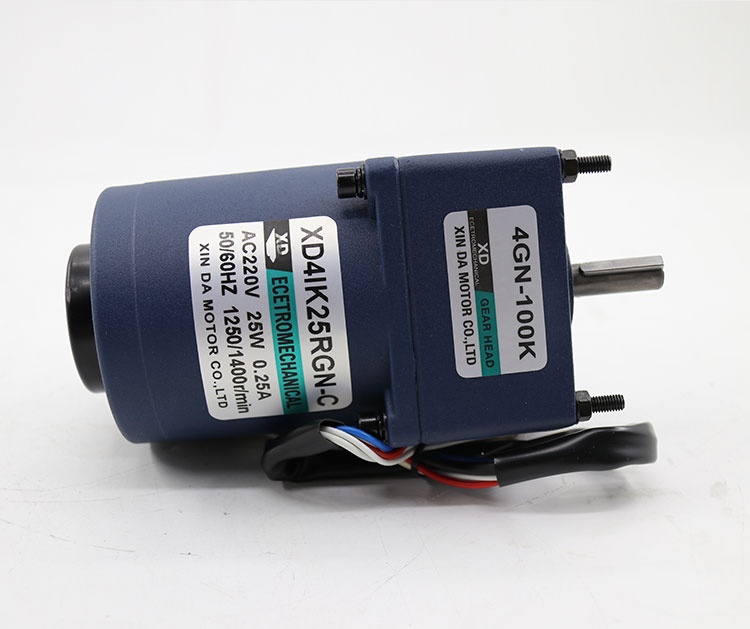

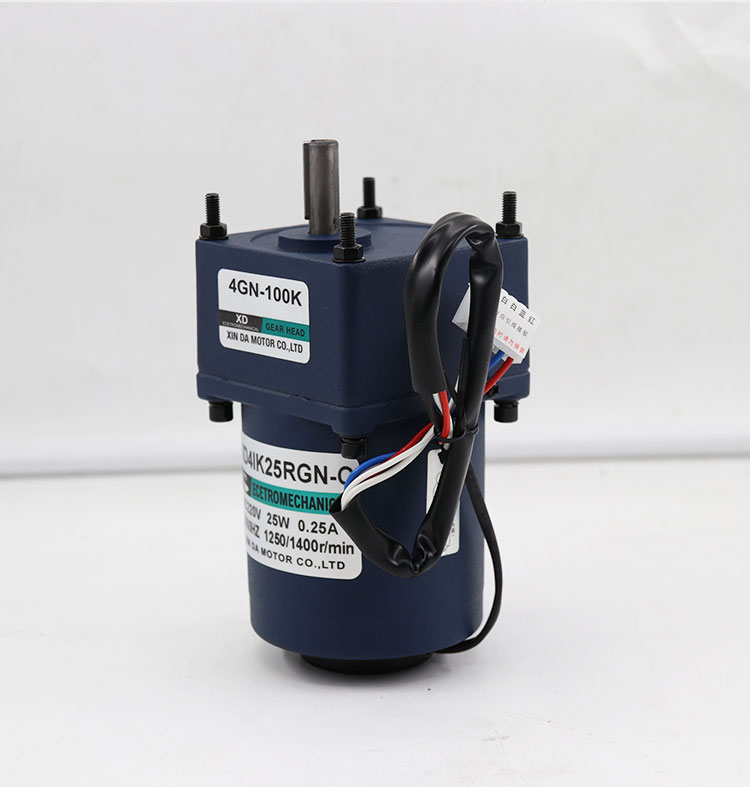

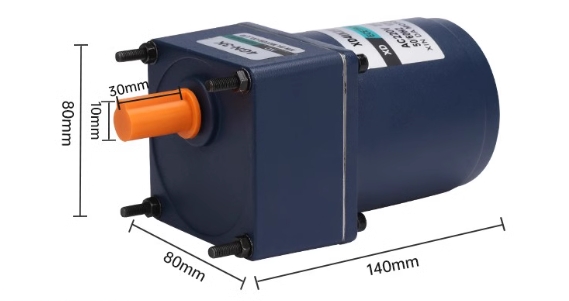

25W gear reduction motor micro speed regulating small motor single phase asynchronous motor A5 ac controller

Rotating speed selection:

500 rpm/300 rpm/200 rpm/100 rpm/60 rpm/50 rpm/30 rpm/20 rpm/10 rpm/Other speeds

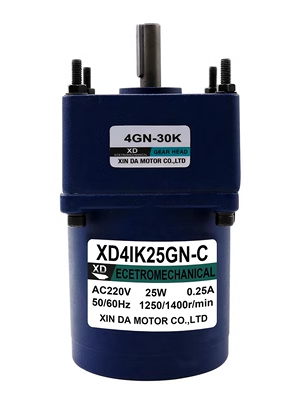

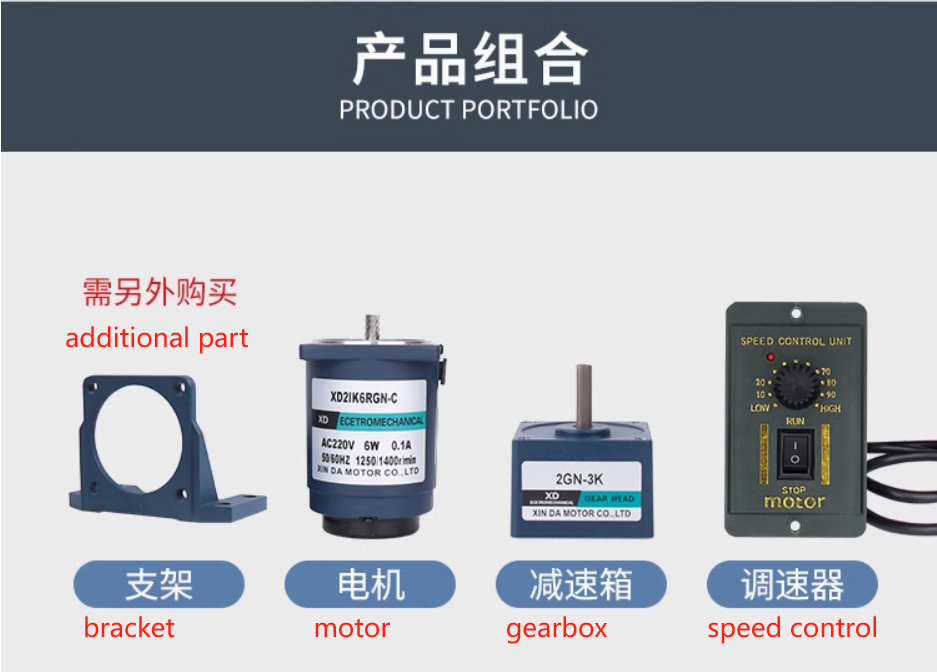

-fixed speed motor,

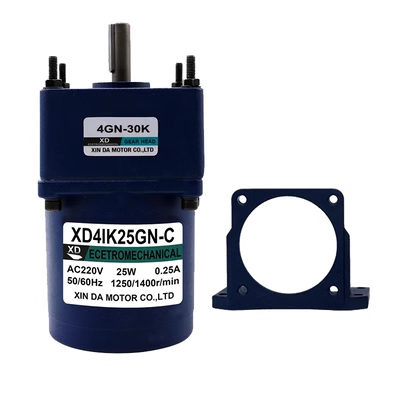

-fixed speed motor + bracket

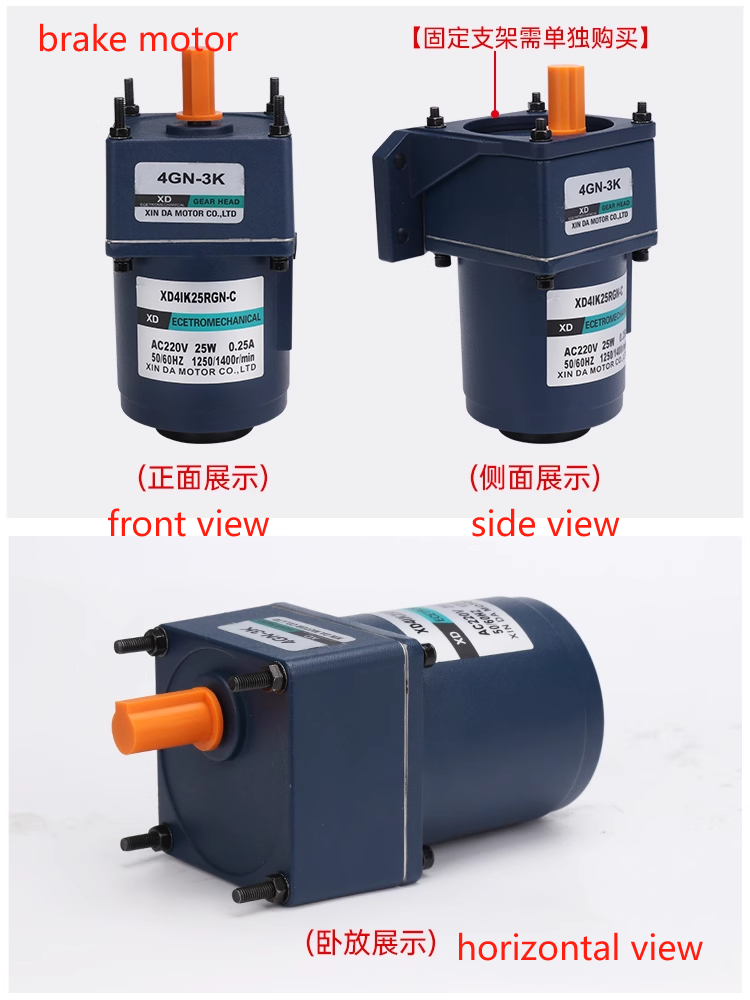

-brake motor,

-brake motor + bracket

-speed regulating motor,

Process flow---Strict factory inspection process ensures the quality of each motor
-Insulation resistance test
-Speed test
-Power test
-Vibration test
-Passed the test
-life span test
-load test
-Temperature test

The customization process supports OEM/ODM customization

-Consult customer service to provide needs
-Quality inspection customer inspection
-Sample production based on incoming samples and drawings
-Finished product packaging and fast delivery
-Confirm sample production
-Customer receipt transaction successful

Professional focus and excellence
All-copper coil, low noise and high torque
Precision manufacturing
All copper coil alloy gear
Stable performance, longer life and durability
Large torque, stable performance, fast heat dissipation and lifespan 10 times that of ordinary coils
Alloy steel gear
Thicker gears, longer lifespan, precise mechanism and high torque

Note:
The reduction motor is composed of (motor) + [reducer]. Different speed ratios can achieve different speed regulation ranges, and their strengths are also different.

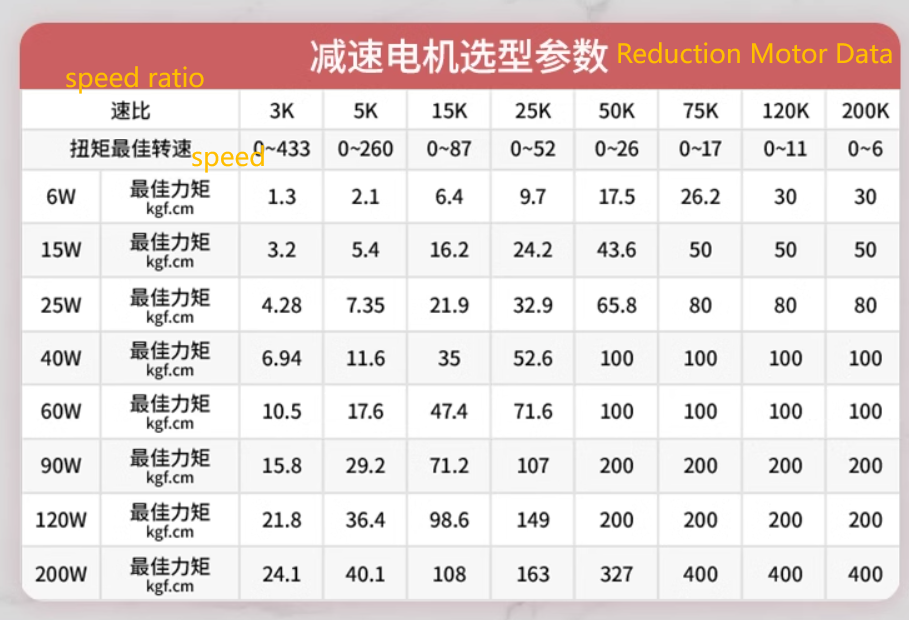

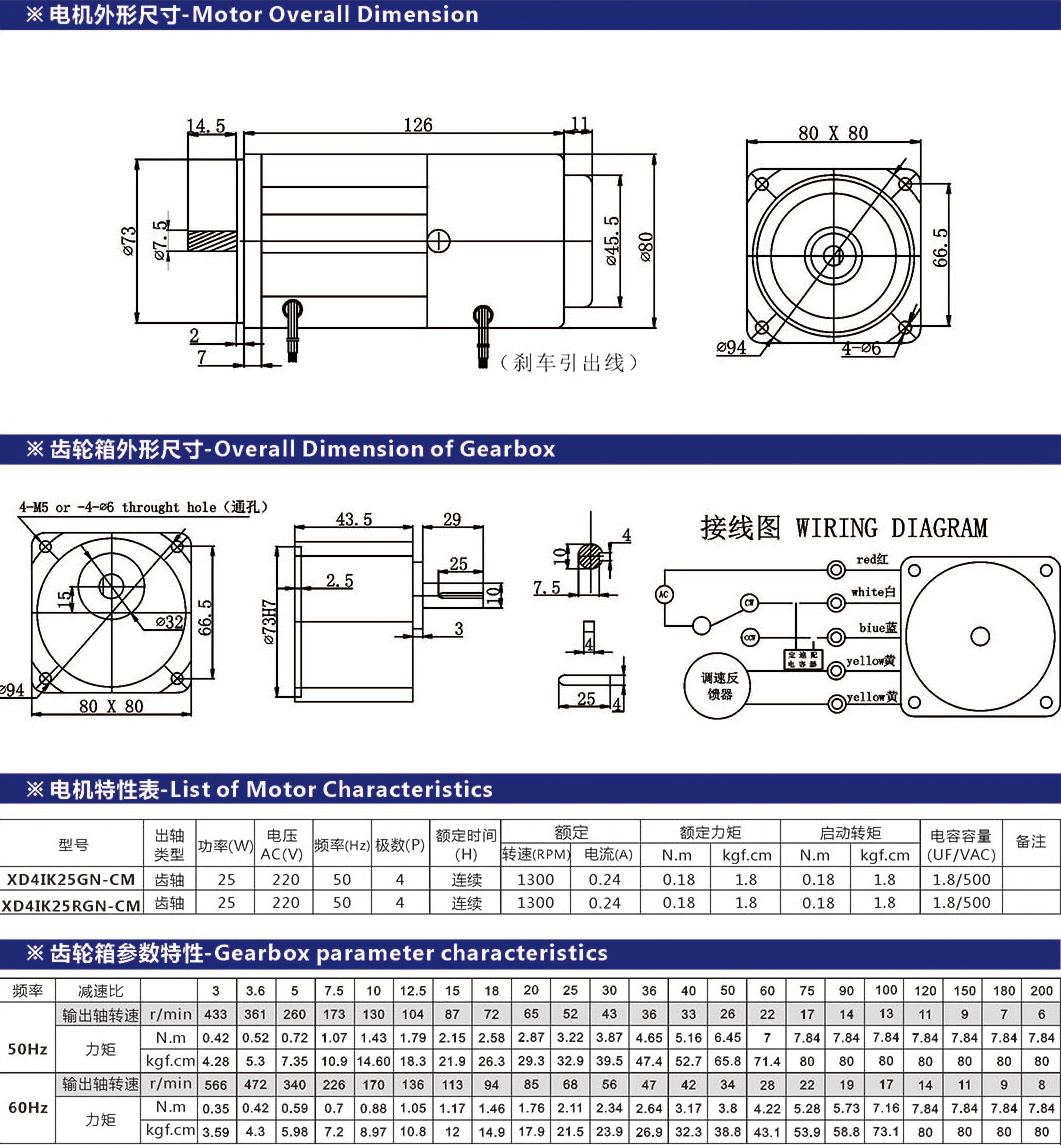

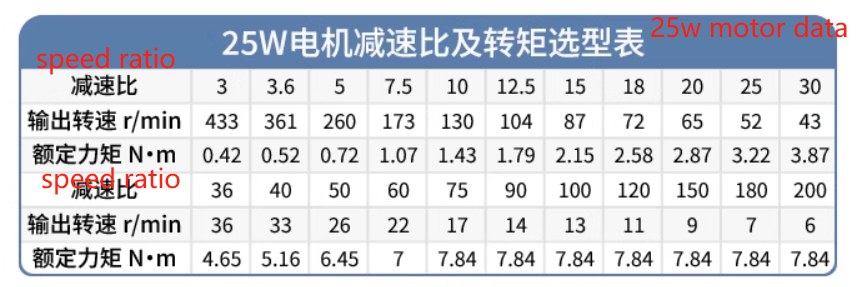

Reduction motor selection parameters

Different installation structures and different selections are recommended. It is recommended to contact online customer service for recommendations.

*The above range belongs to the safe speed regulation range of light load, that is, within this range, the motor can run for a long time. The safe speed regulation range of light load: full speed ~ 50% of full speed. The safe speed regulation range of heavy load: full speed ~ 50% of full speed. 70%

* When the reduction gearbox decelerates, the lower the speed, the greater the force. When the speed regulator adjusts speed, the higher the speed, the greater the intensity.

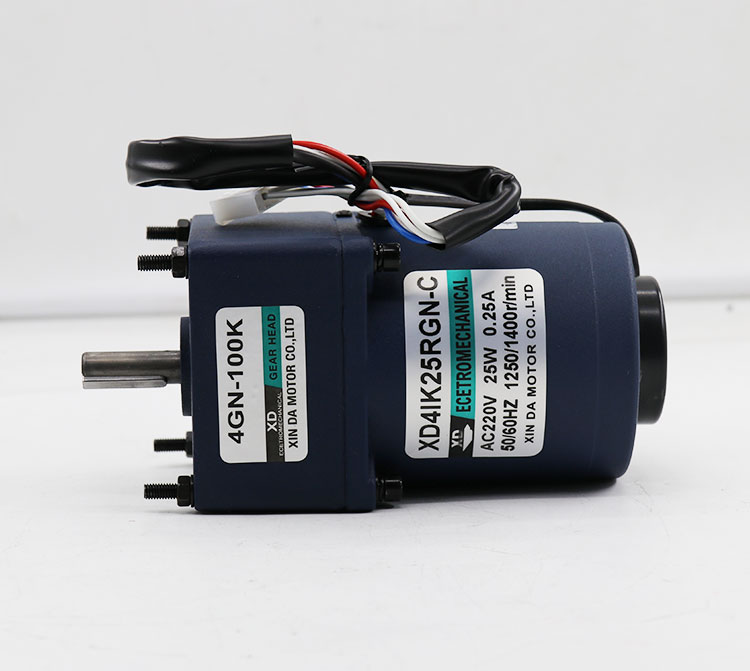

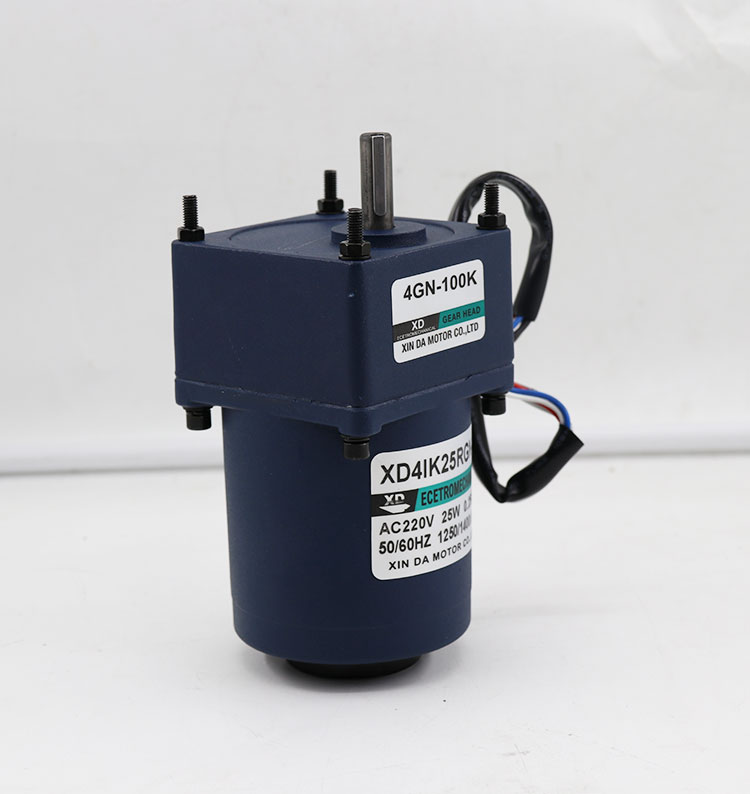

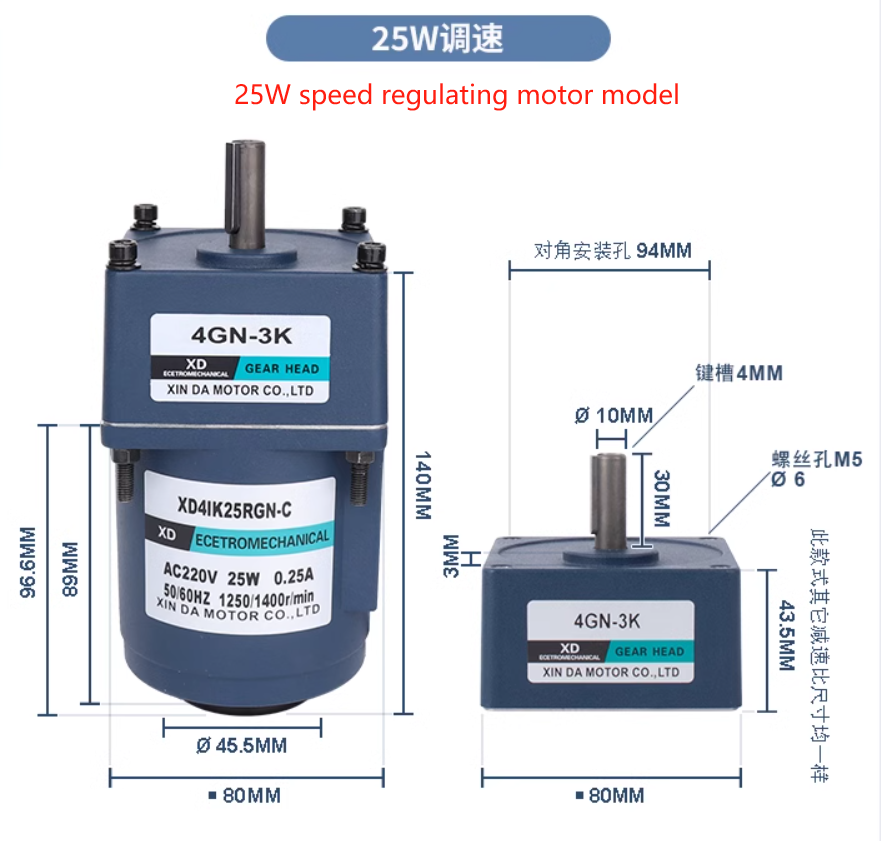

220V AC reduction motor 25W high torque micro speed regulating small motor low speed motor gear reducer

Rated Power:25W

Usage:Electric Tool

Name:Ac Motor High Torque

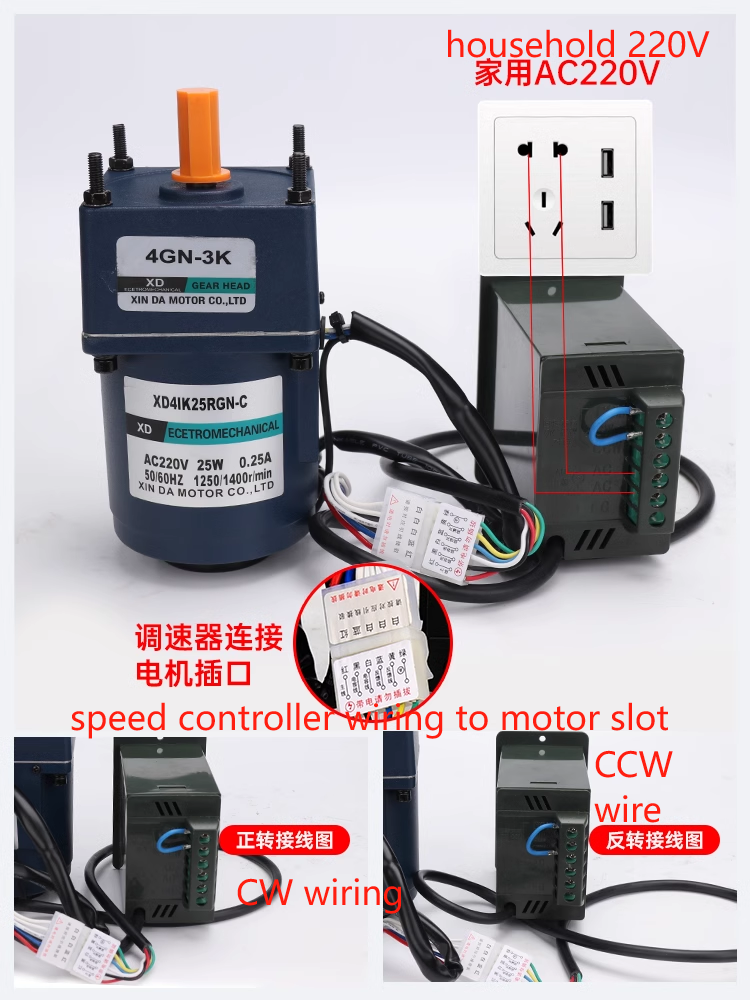

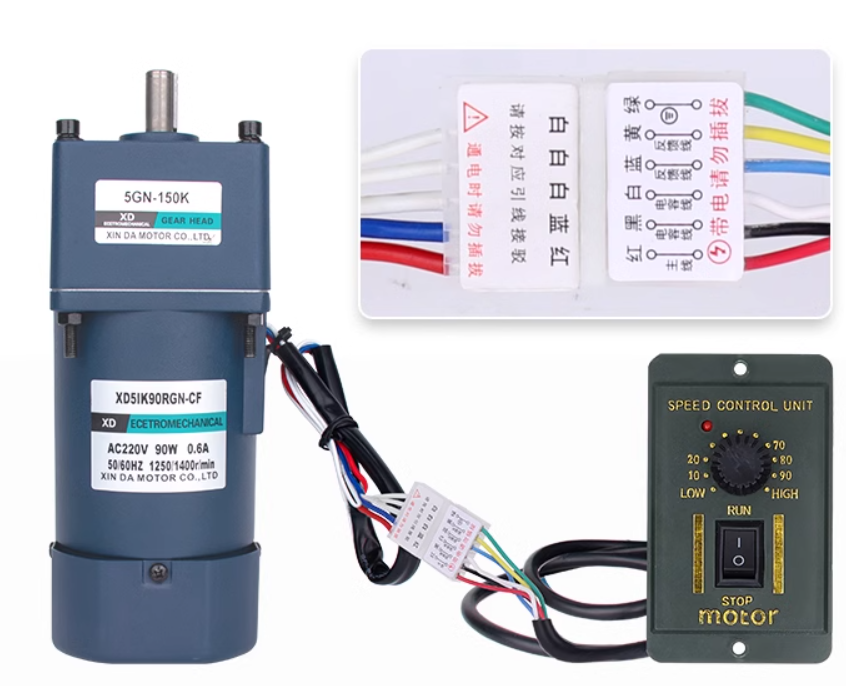

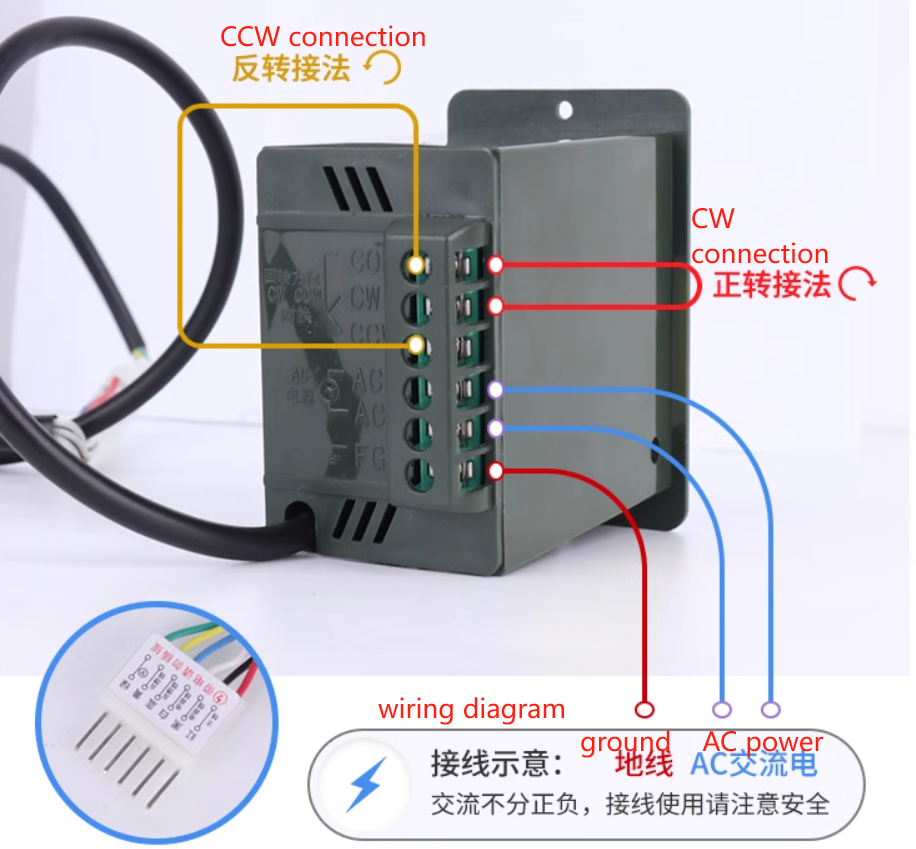

Speed controller connected to motor
Wiring the motor and speed controller: Turn the ends with stickers upwards and connect them, it is complete.

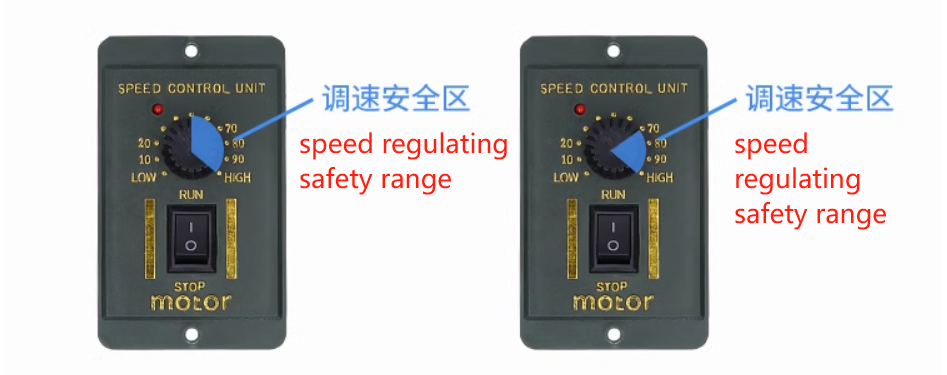

Speed regulation safety range
Q: Why can the speed of the motor be slowed down only to a certain range when it is loaded? A: Because the motor slows down by reducing the voltage. When the voltage is reduced, the torque of the motor will also become smaller, and it is likely to be overloaded.
A: In addition, after the motor speed is slowed down, the cooling fan will also slow down, and the heat dissipation effect will become worse. At this time, the heat dissipation will become worse due to the increase in current, and the motor will heat up seriously, which may easily cause the stator coil insulation to fail and cause a short circuit to burn the machine.

Small load: The motor with small load does not work continuously for a long time
Large load: If the motor with a large load does not work continuously for a long time, the speed regulator shall not be lower than 50% of the speed regulation.
The speed regulator must not be lower than 70% of the speed

Connect the speed regulator to AC power: Connect the two AC ports to the power cord and it is complete.
