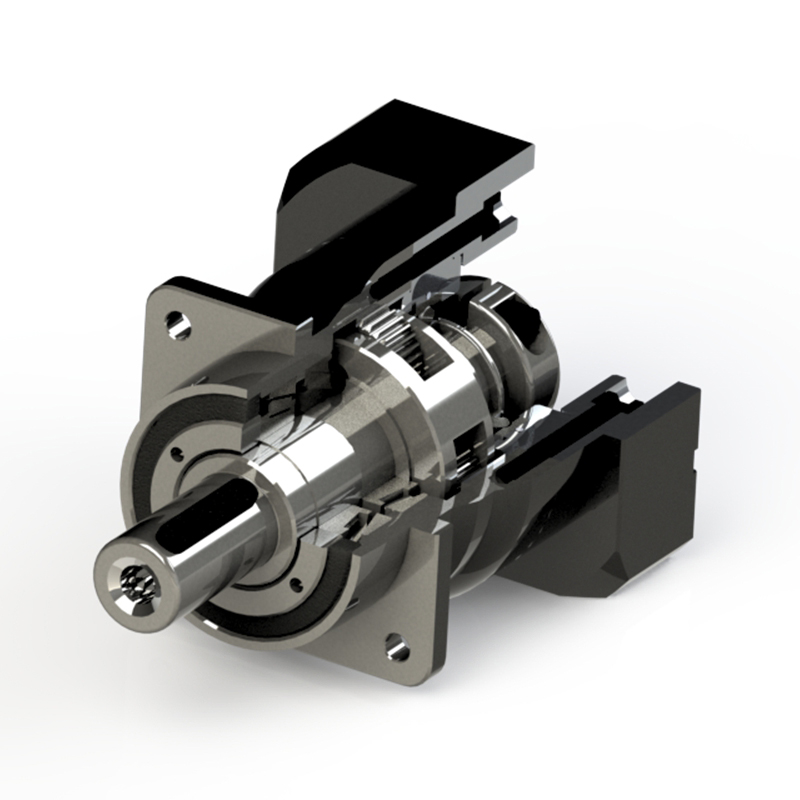

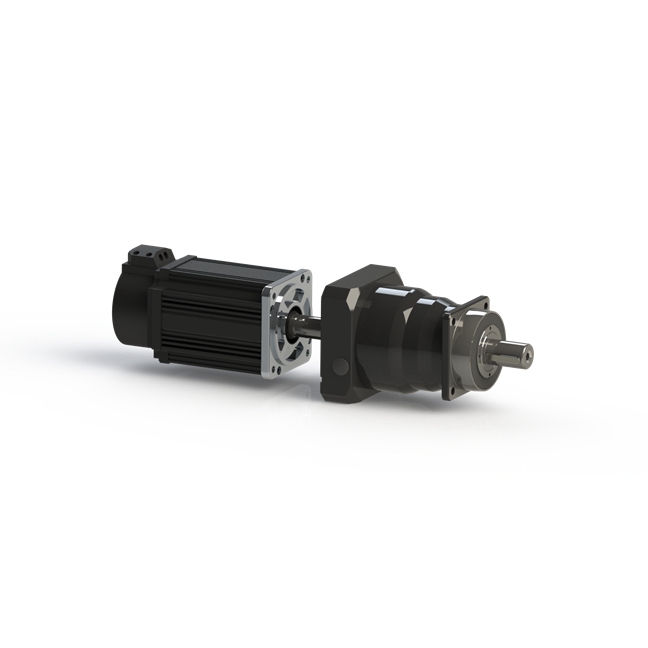

XD transfer case travel reducer mini excavator planetary reducer gearbox

Essential details

Warranty:3 years
Applicable Industries:Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company, Servo Motor
Weight (KG):10 KG
Customized support:OEM
Gearing Arrangement:Planetary
Output Torque:Can be customized, Depended on the servo motor
Input Speed:Can be customized, Depended on the servo motor
Output Speed:Can be customized, Depended on the Ratio
Place of Origin:Shandong, China
Brand Name: XD
Product name:Planetary Gearbox
Ratio:9,12,15,16,20,25,32,40,50,64
Input interface:According to motor output
No-load torque at 20oC (Nm):≤0.1Nm
Normal Input Speed:3000r/min
Max. Input Speed:6000r/min
Max. Radial Load:2800N
Max. Axial Load:3500N
Noise:≤60db

Protection grade (IP):IP54
