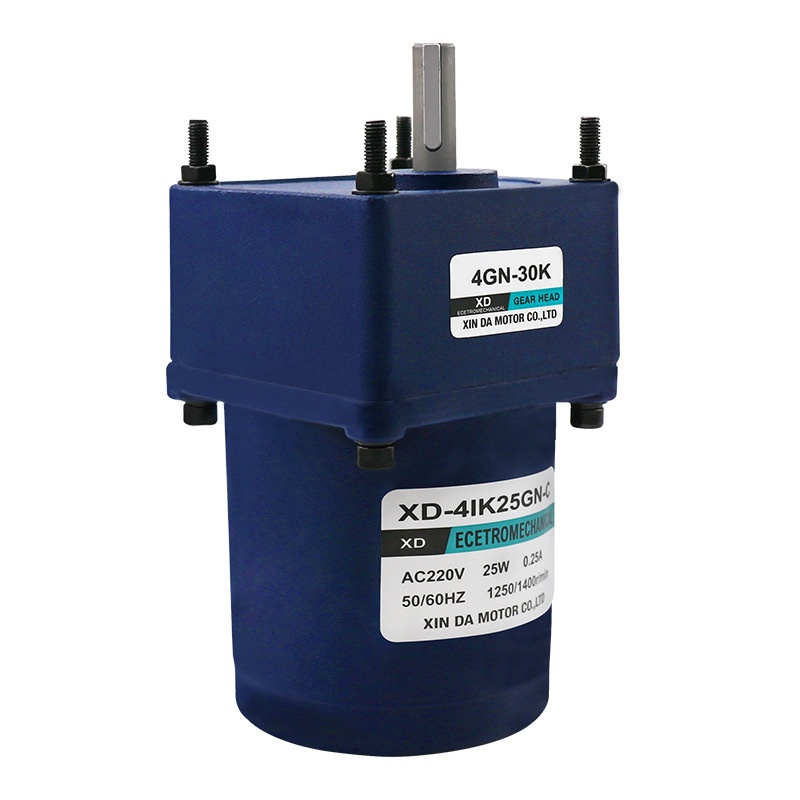

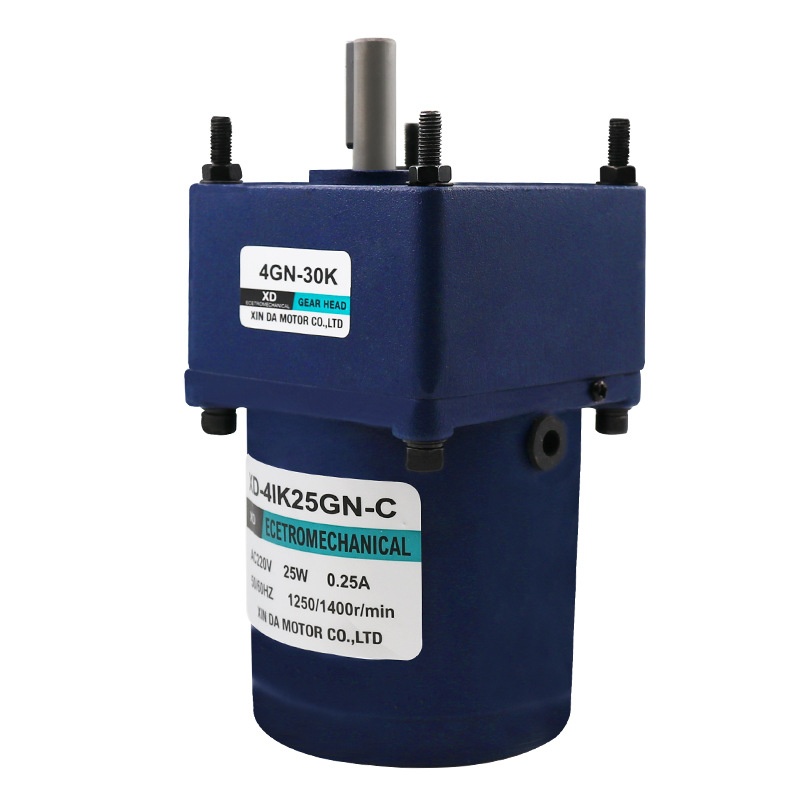

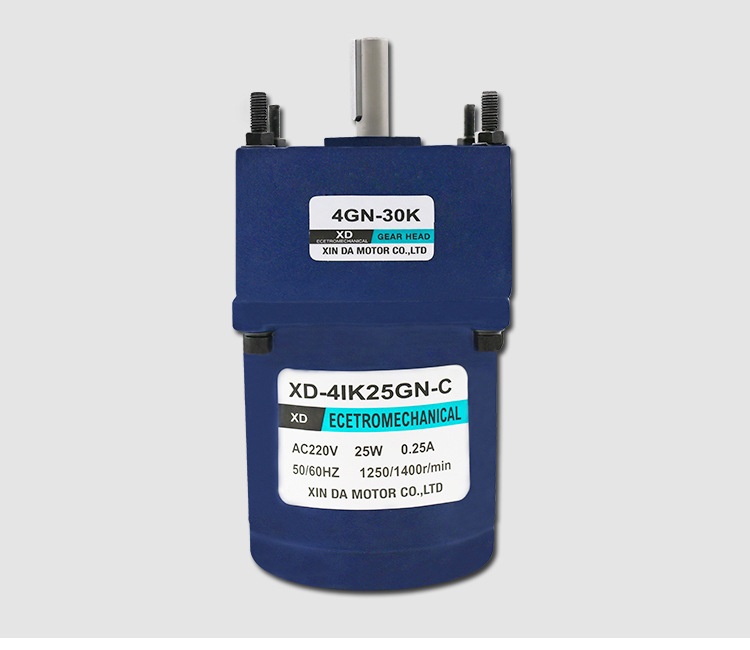

Spot AC gear reduction motor 25W single-phase slow motor 220V low speed fixed speed small motor

Commodity attributes

place of origin：Chinese mainland
order number：XD-4IK25GN-C
brand：Xinda   Item No.XD-4IK25GN-C
product type：single phase asynchronous motor
model：XD-4IK25GN-C
number of poles：4 poles
rated power：25W
Rated voltage：220（V）
Rated speed：500-10（rpm）
certified product：CCC
Application range：food machinery packaging machinery etc.
3C rated voltage range：AC 36V and above

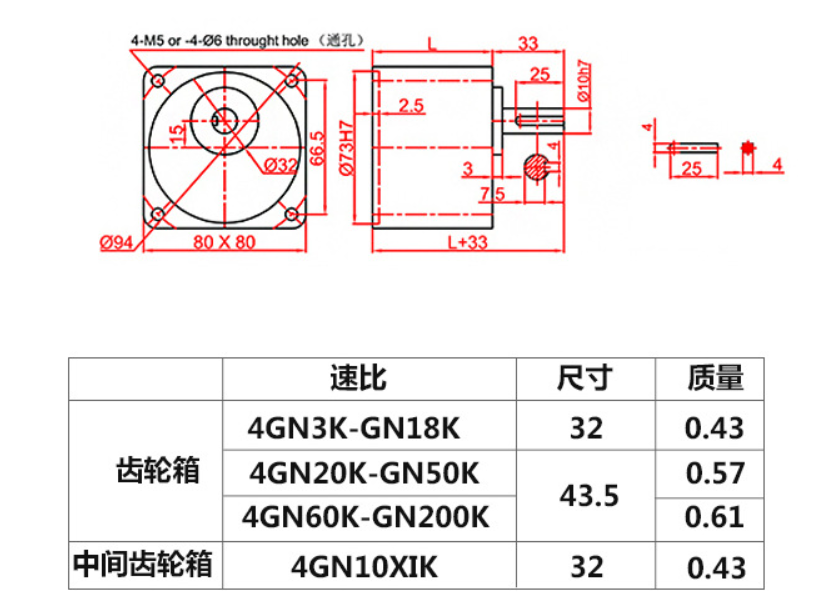

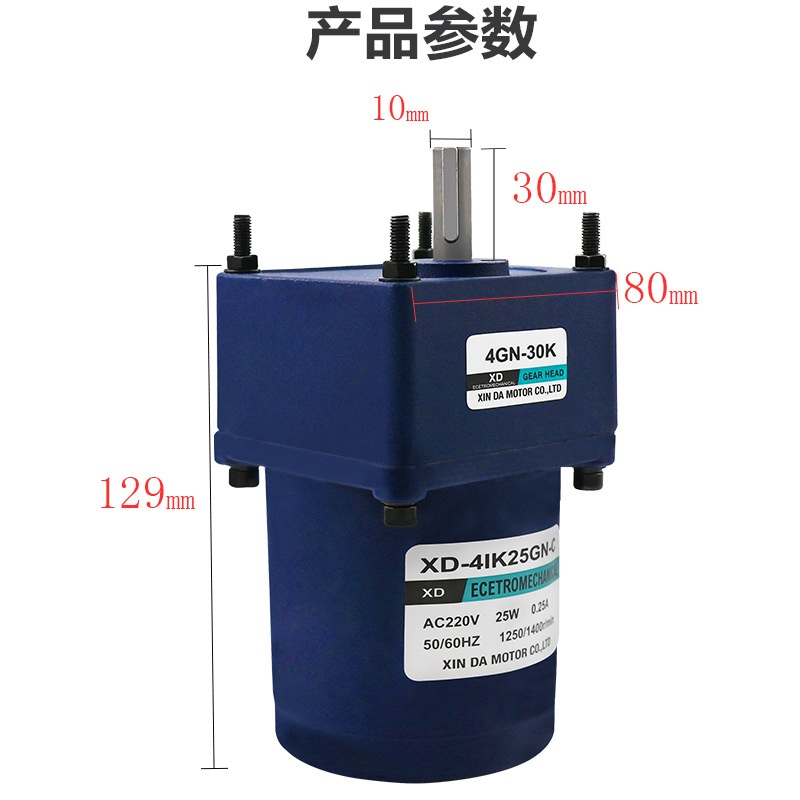

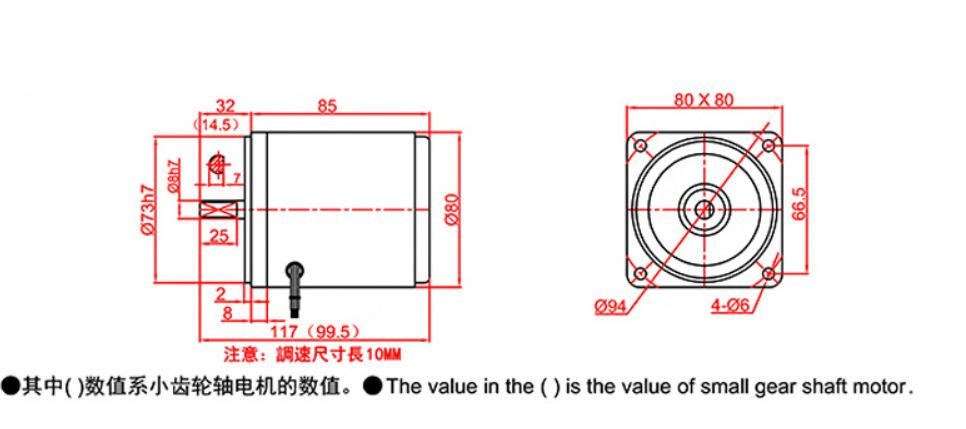

Motor shape and dimension

Gearbox shape and dimension

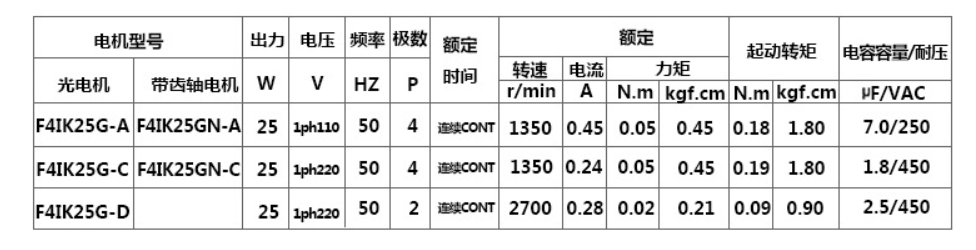

Motor Performance Chart

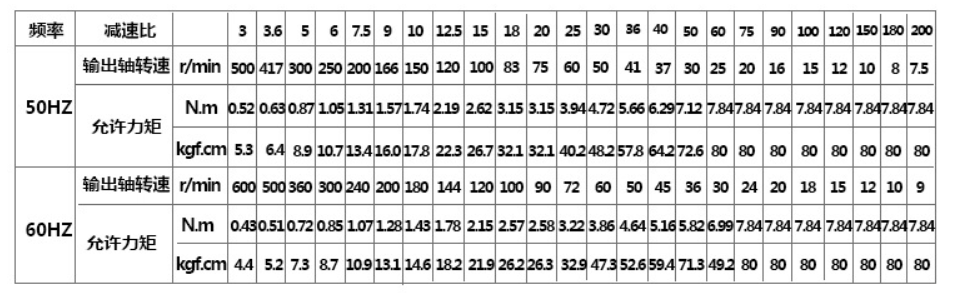

Gearbox Parameter Chart

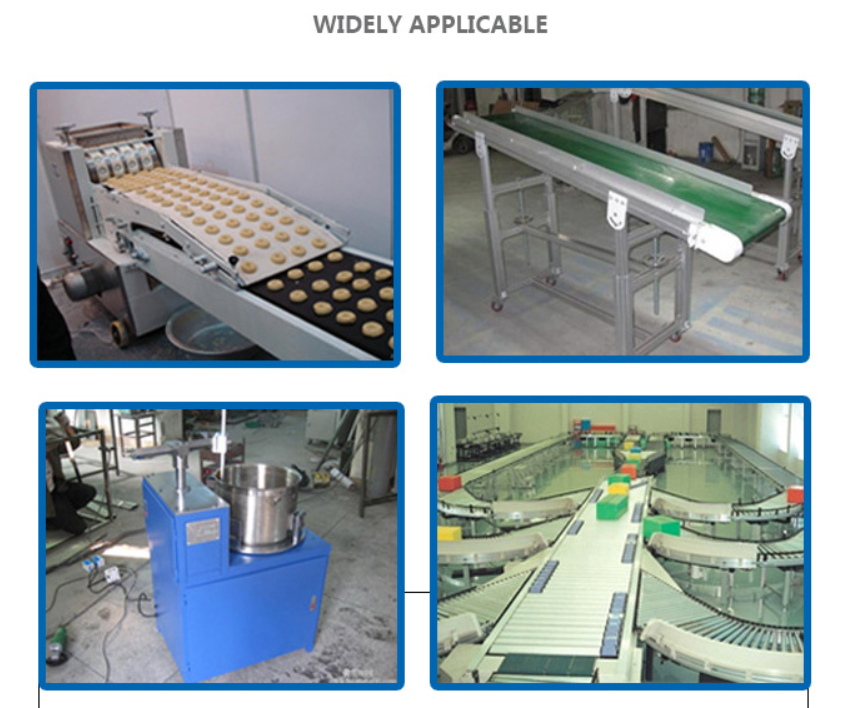

Application Scenario of Xinda Gear Motor
