The parameter of 15KW96V electric motor

Motor code: YS210H1596H61-X

Rated power:15KW

Rated voltage: 96VDC

Rated speed:3000rpm

Working system:Ｓ2-60min

Rated frequency: 102Hz

Rated current: 174A

Poles number:４

Package size:　49X34.5X33.5 wooden box package or 43.5X27.5X30 carton box package

Technology requirement
1. The appearance of the motor is clean and there are no oil spots.
2. Turn it gently by hand. The motor should run smoothly without any jamming.
3. The logo is firmly pasted and in the correct position.
4. Observed from the driving end, when the alphabetical order of the motor wire ends is the same as
When the power supply phase sequence is the same, the motor rotation direction is clockwise, and the A signal leads the B signal by 90°.
5. After assembly, apply anti-rust oil 202-1 on the shaft extension end.
6. Surface defects shall be inspected according to GB/T5779.1-2000. 7.
Tolerances not noted shall be inspected according to GB/T1804-2000.
8. The sensor lead length is 1500mm.

The drawing of the motor body

The drawing of the motor driving over

Technology requirement
1. The tolerance GB/T 1804-m is not noted.
2. There should be no pores or blisters on the surface of the casting.
3. Deburr after processing.
4. Spray epoxy anti-rust paint and black amino drying enamel on the non-fitting surface.
5. No fillet R4 is noted.

The drawing of the inner spline slot

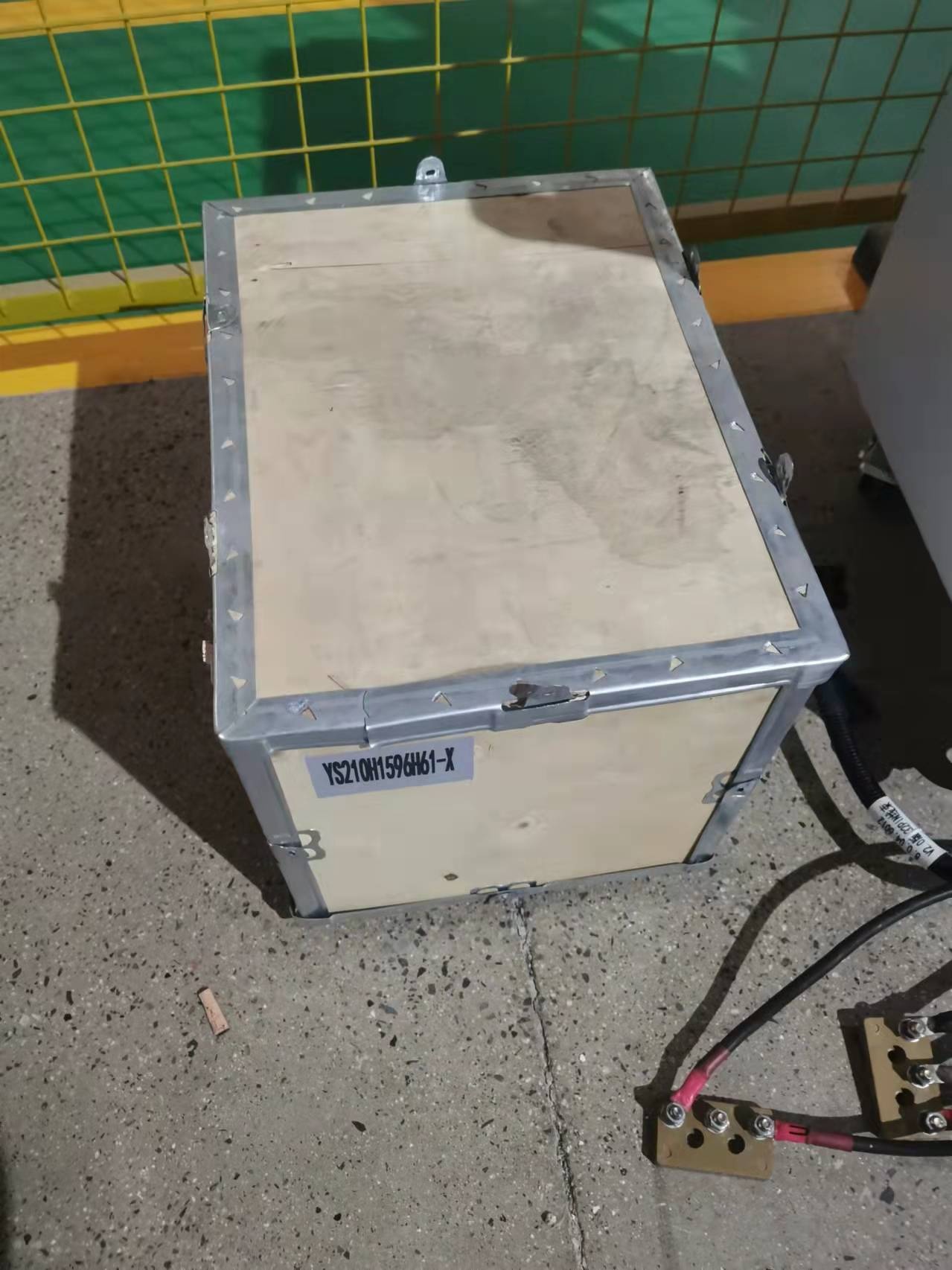

The packing to the motor

49X34.5X33.5 wooden box package

or 43.5X27.5X30 carton box package

Curve of 15KW144V/108V

Motor pictures on field

Application: logistic vehicles
