4D60GN

Date:2024-03-13   Author:XINDA MOTOR
4D60GN

12V motor 24V DC reduction motor 60W high torque micro motor gear slow speed regulating small motor


Rotating speed selection:

---600 rpm per minute
---400 rpm per minute
---300 rpm per minute
---200 revolutions per minute
---100 revolutions per minute
---50 revolutions per minute
---30 revolutions per minute
---20 revolutions per minute
---10 revolutions per minute
---Other speeds


Voltage :12V
24V
Product with brake or not :

---with brake
---Without brake


Brand: XD

Model: 4D60GN

Origin: Mainland China
Power supply mode: DC

Voltage: 24V

Model: 4D60GN
Power: 60W

Function type: DC reduction motor

Power supply type: DC motor
Speed: slow motor


Powerful 60W DC reduction motor 100KG
10 turns can drive
Pure copper

CW/CCW turning


Motor parameters

Product name: DC reduction motor
Size: 4D60-24GN
Motor properties: forward and reverse rotation

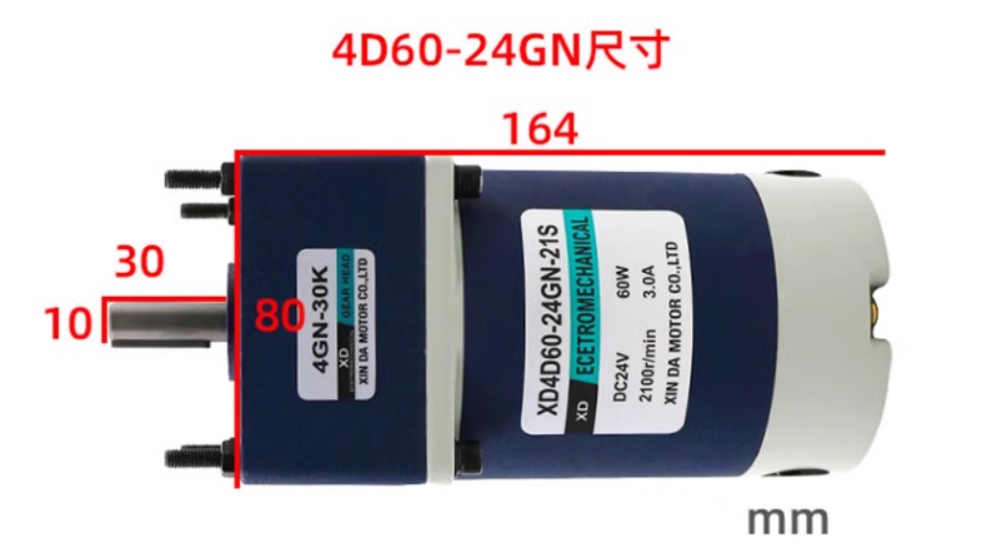

Motor size: 80*164mm
Current: 3.5A
Speed: 10-600
Motor power: 60W
Voltage DC: 12/24V
Output shaft size: 10* 30mm

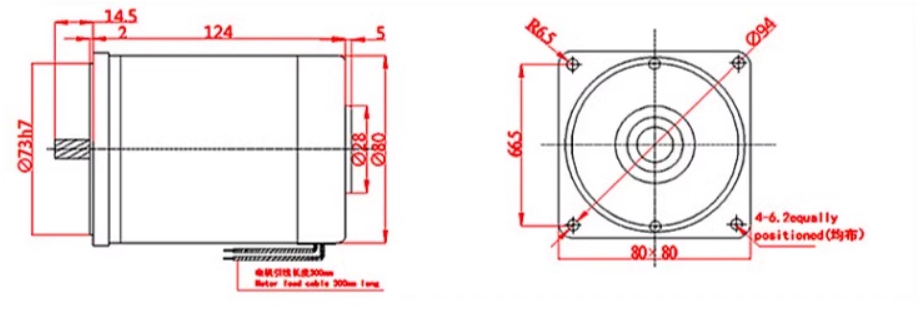

Motor dimension drawing

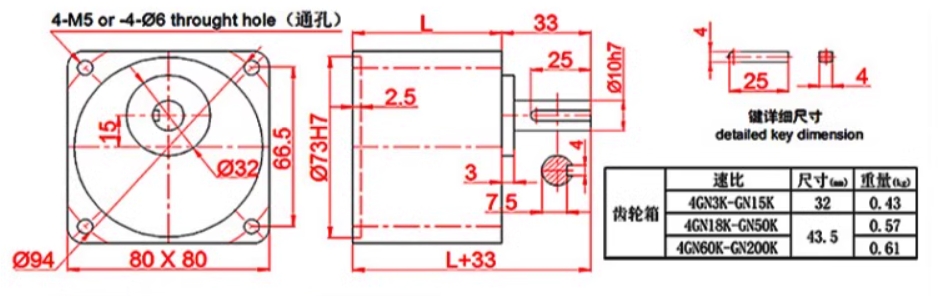

Gearbox dimension drawing

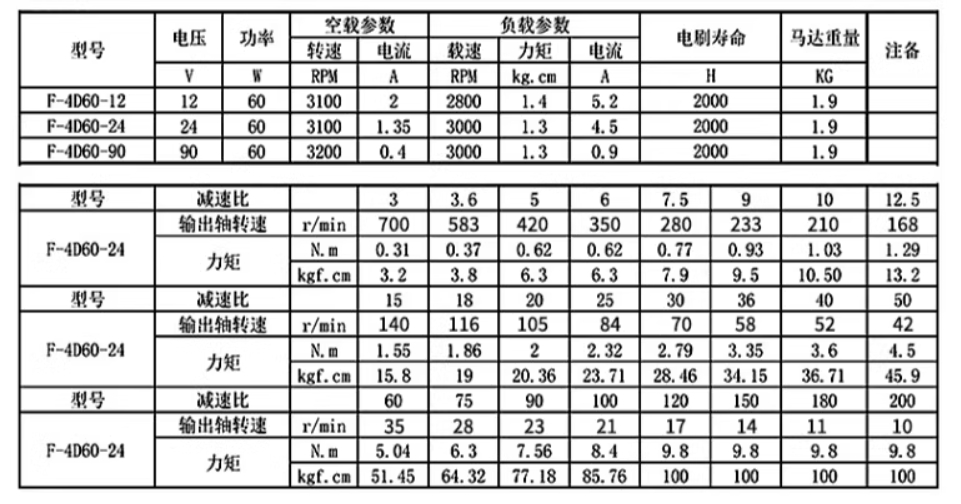

Motor parameter

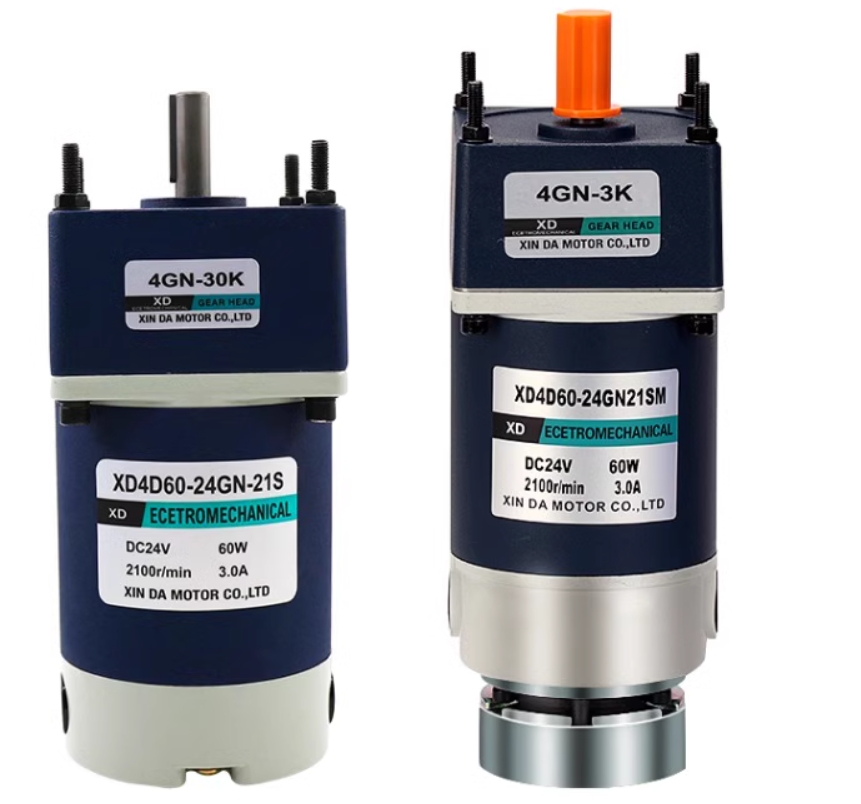

Production Selection

---With brake model

---without brake model

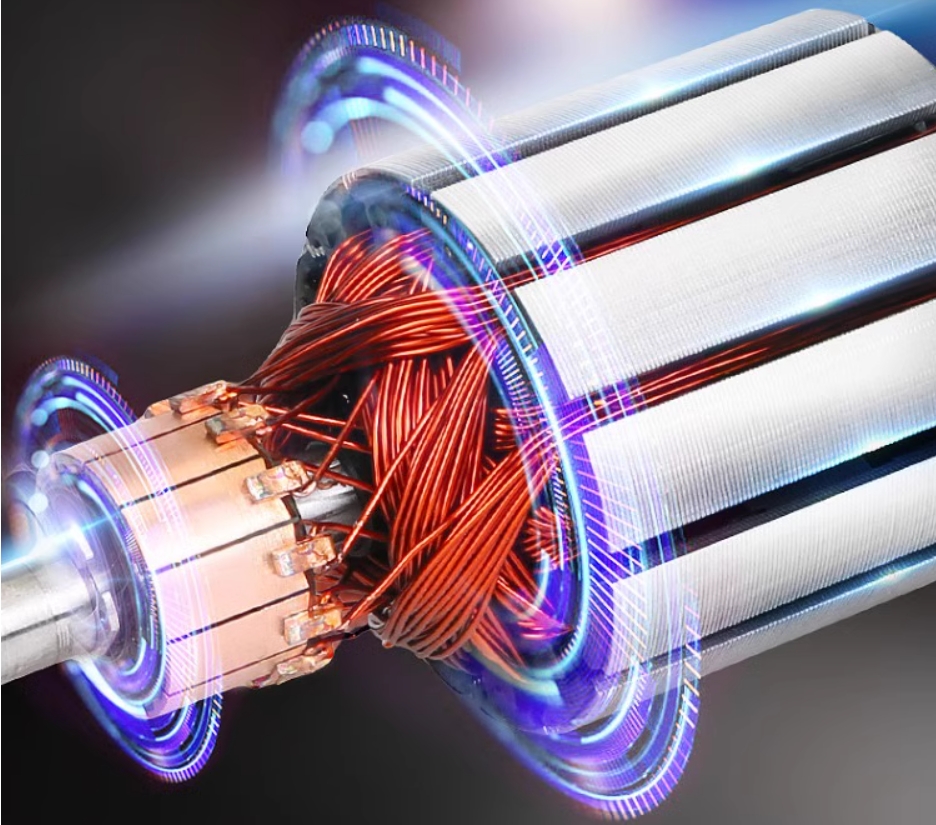

All-copper motor, powerful and powerful movement, enhanced power/stable and reliable/long service life

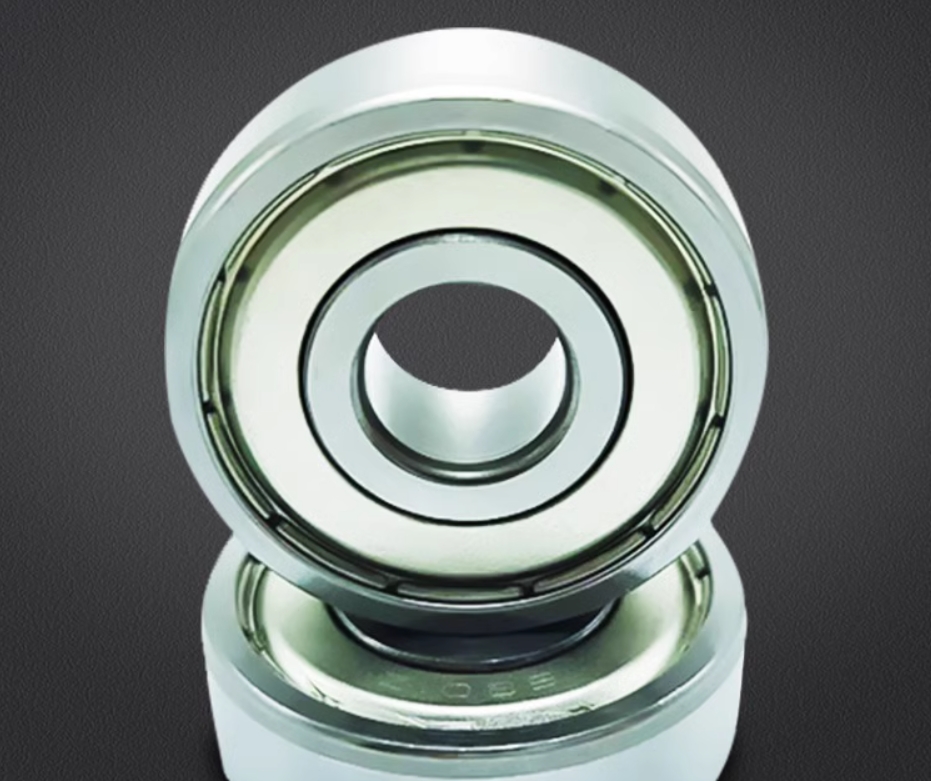

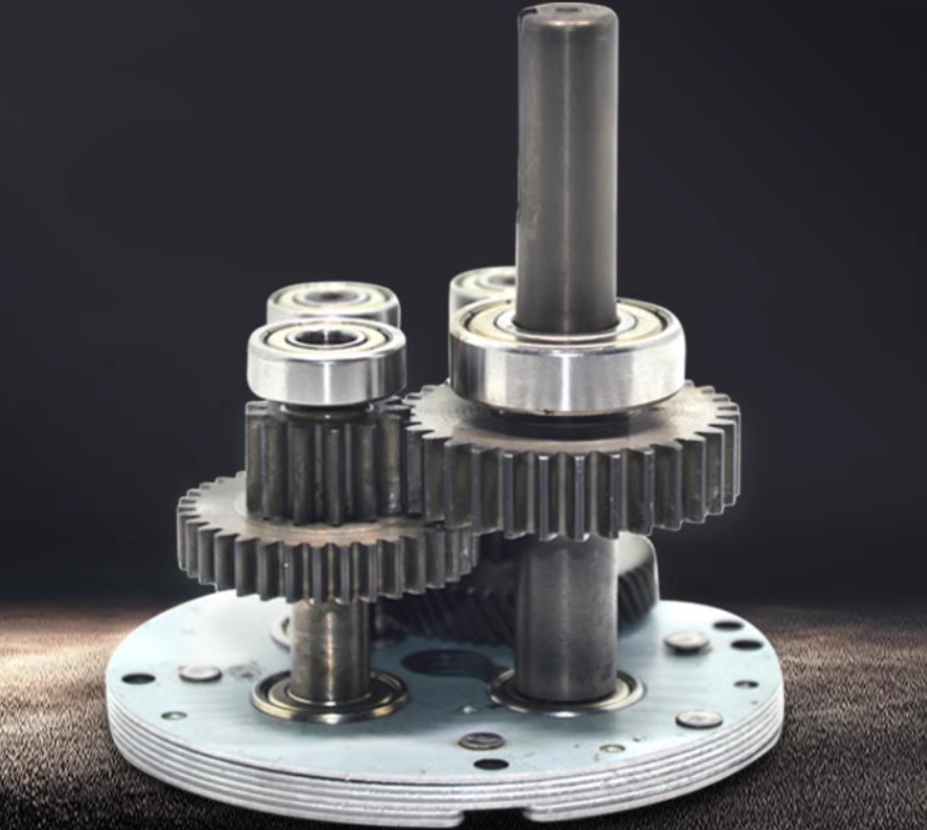

High quality roller bearings


All-steel gears ensure strength
1000°C high temperature treatment
20 times gear strength

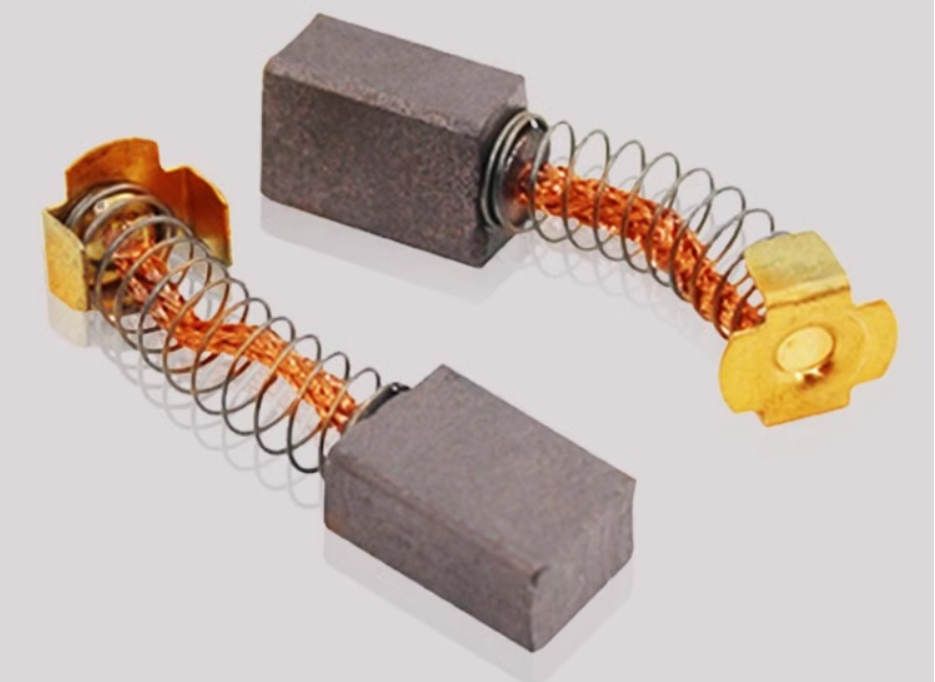

Replaceable carbon brushes for longer life
Small sparks, less loss, and more wear-resistant

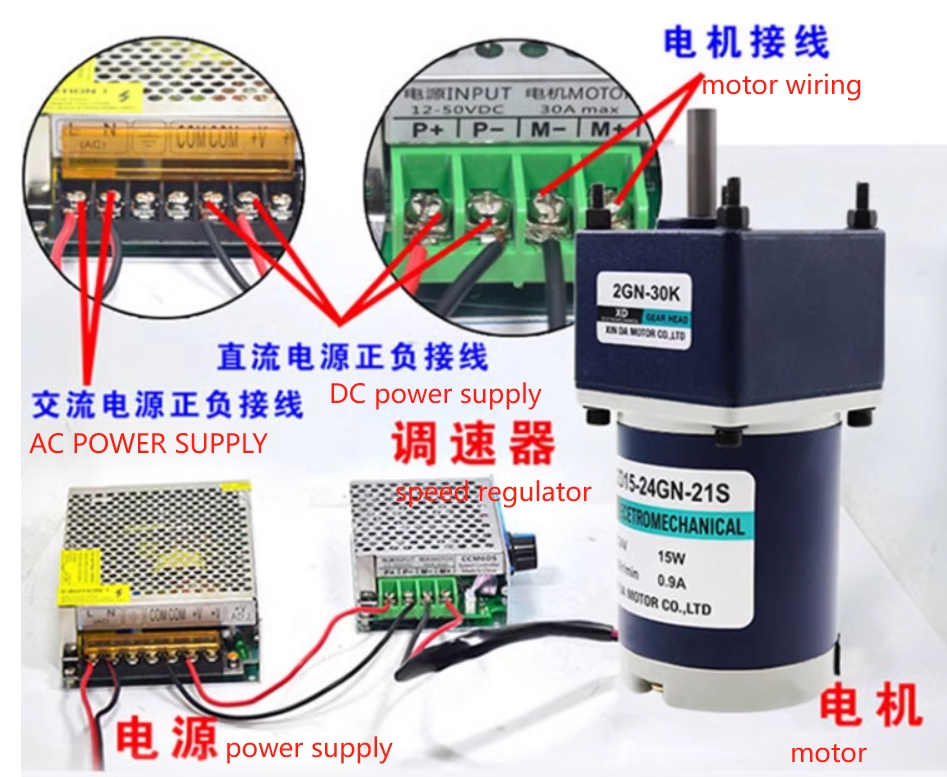

Motor wiring diagram
