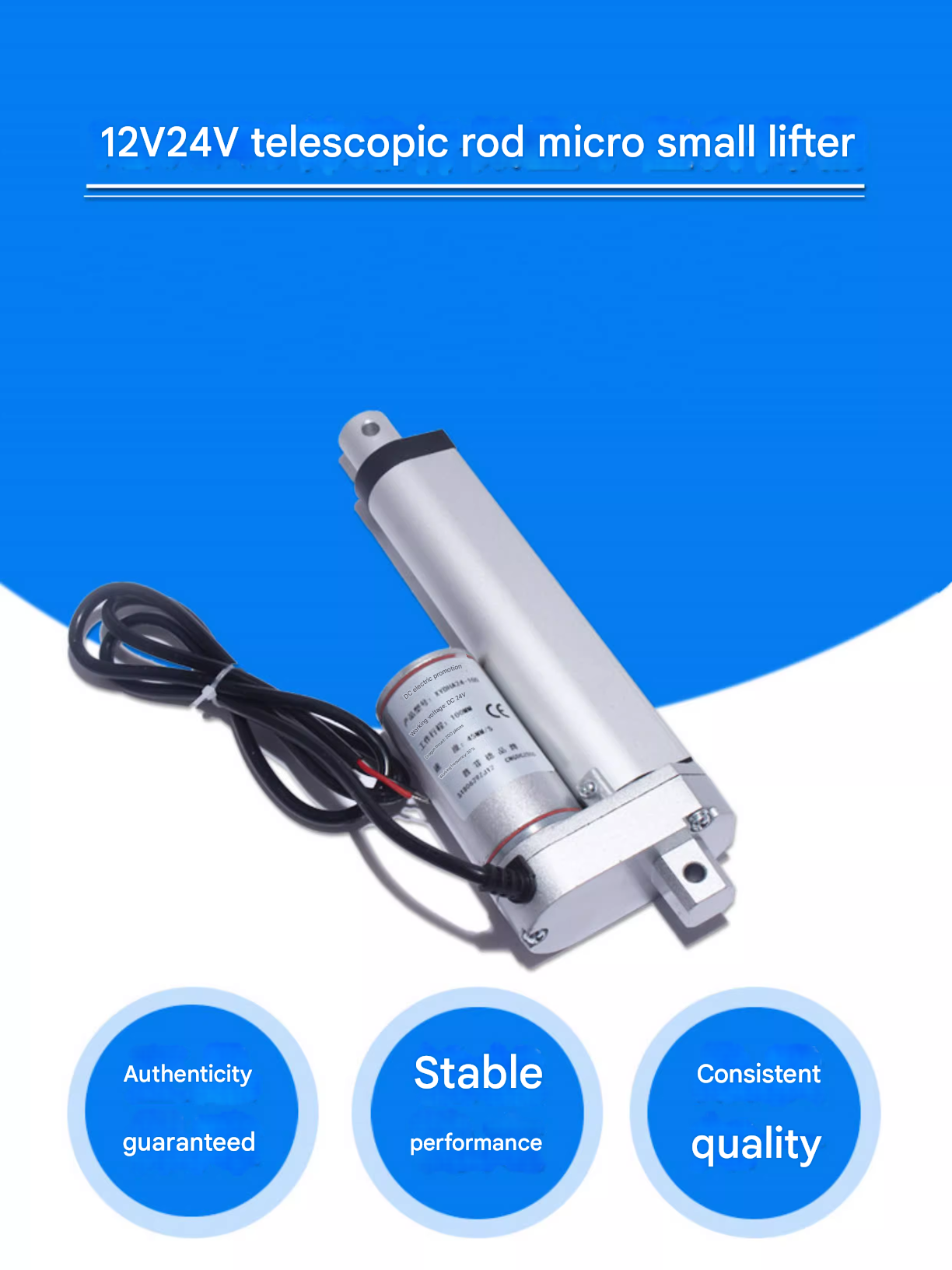

DC electric push rod motor stroke 20mm1000mm12V24V telescopic rod lifter window chamber motor
Youtube video:
https://youtube.com/shorts/ttsKmsp8pLI?feature=share

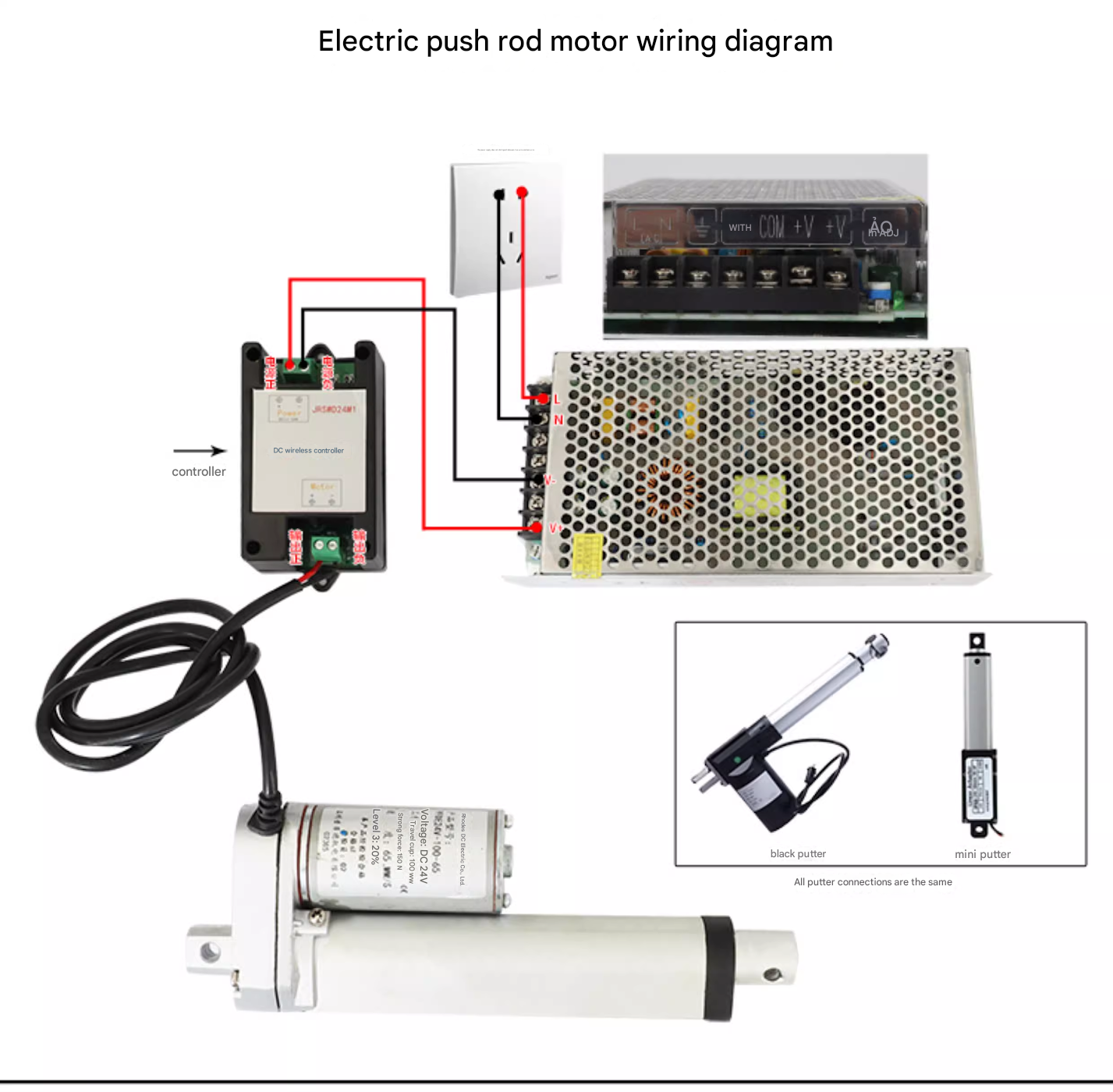

Regarding wiring: The DC electric actuator motor (12V/24VDC) has two positive and negative wires. Reversing the positive and negative poles controls extension and retraction. A forward/reverse switch can be added to control extension and retraction. Faster speeds result in lower thrust; slower speeds result in greater thrust.
The actuator motor bracket/controller/power supply are available separately. Contact customer service if needed.
Instructions and Precautions:
1. The actuator motor has built-in limit switches, automatically stopping at full extension or full retraction. Any power outage will cause the actuator to stop.
2. The actuator motor stroke is not adjustable and is factory-set. Power supply: 12V or 24V DC.
3. The actuator motor speed can be adjusted by adjusting the voltage. Reducing the voltage also reduces both speed and thrust.
Note: Actuator motors are not suitable for use in water.
4. When using multiple actuators simultaneously, due to tolerances in internal gears, motor rotors, and other components, the speeds may be similar. Water damage or burnout of the motors is not covered by the warranty.
#motor #electricengine #electricmotor #dcmotor #machine
Sort by specification:

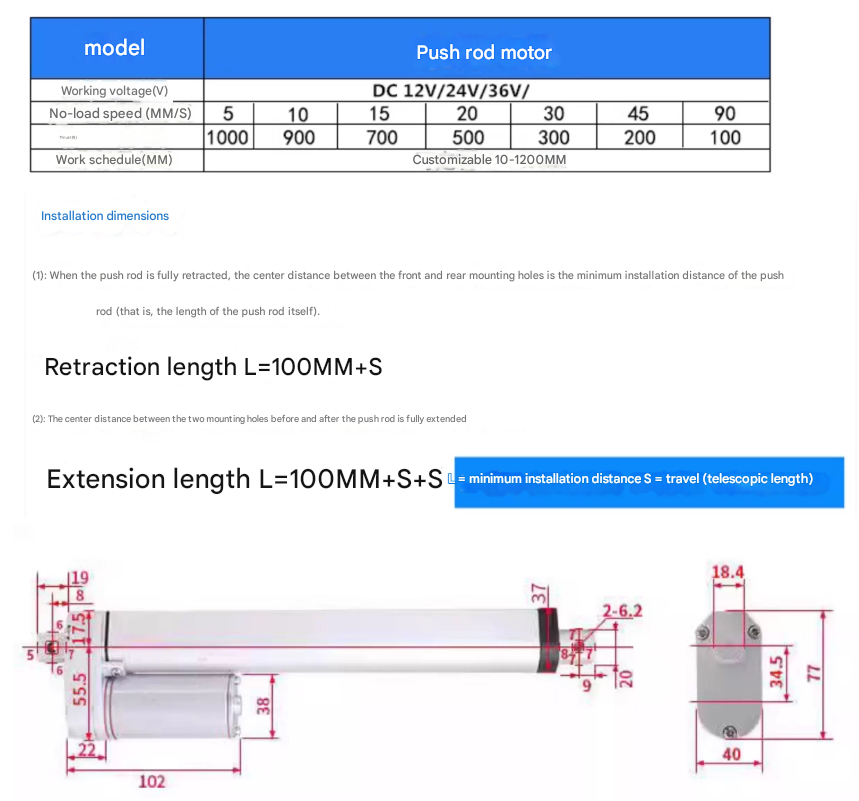

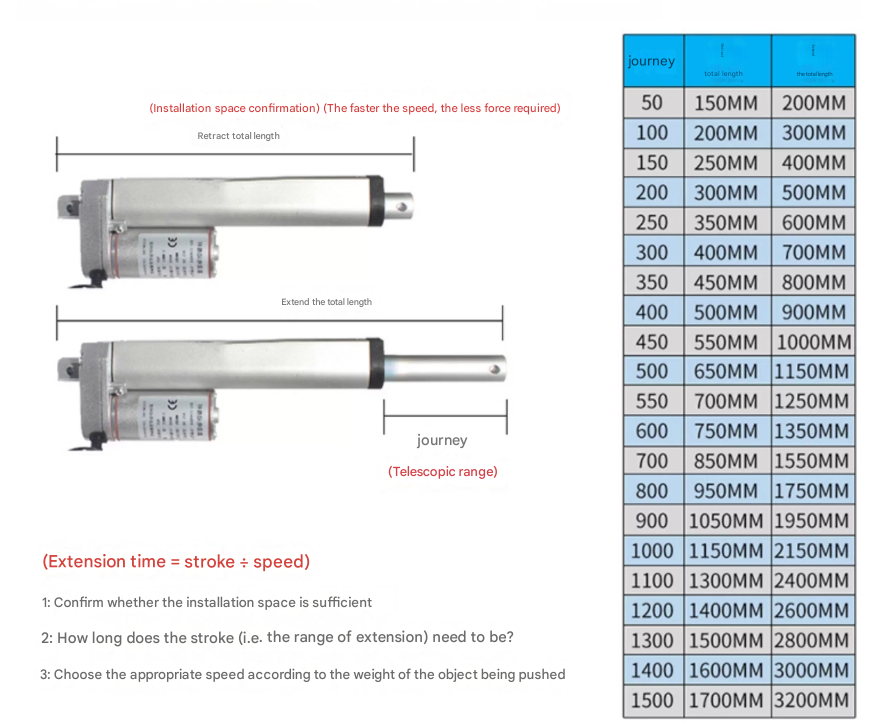

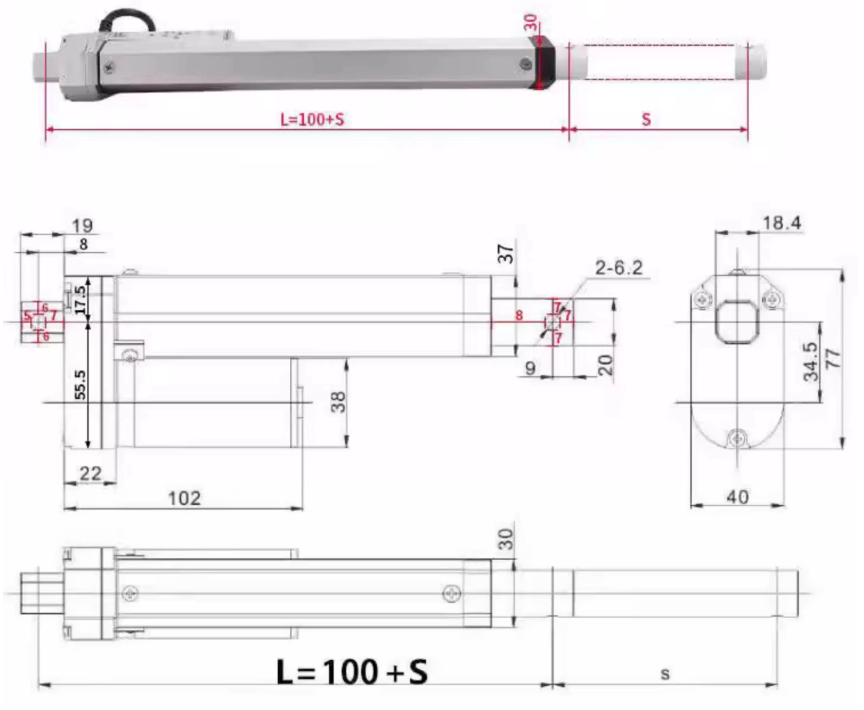

Stroke 20MM [telescopic length 2cm]
Stroke 30MM [telescopic length 3 cm]
Stroke 50MM [telescopic length 5 cm]
Stroke 100MM [telescopic length 10cm]
Stroke 150MM [telescopic length 15 cm]
Stroke 200MM [telescopic length 20cm]
Stroke 250MM [telescopic length 25 cm]
Stroke 300MM [telescopic length 30cm]
Stroke 350MM [telescopic length 35 cm]
Stroke 400MM [telescopic length 40cm]
Stroke 450MM [telescopic length 45 cm]
Stroke 500MM [telescopic length 50cm]
Stroke 550MM [telescopic length 55 cm]
Stroke 600MM [telescopic length 60cm]
Stroke 650MM [telescopic length 65 cm]
Stroke 700MM [telescopic length 70cm]
Stroke 750MM [telescopic length 75 cm]
Stroke 800MM [telescopic length 80cm]
Stroke 850MM [telescopic length 85 cm]
Stroke 900MM [telescopic length 90cm]
Stroke 950MM [telescopic length 95 cm]
Stroke 1000MM [telescopic length 100 cm]
Wired controller + power supply (excluding push rod motor

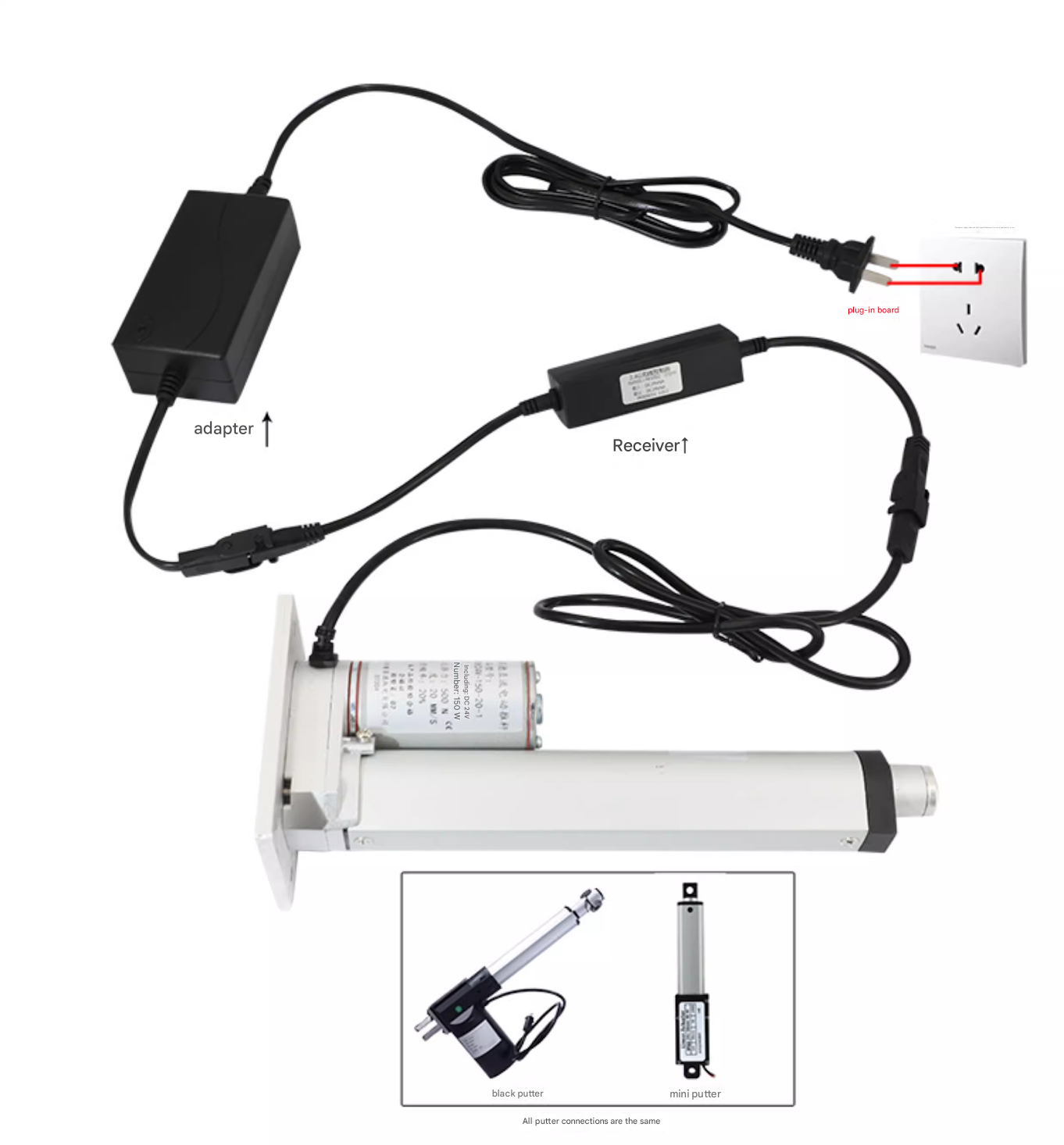

Wireless remote control + power supply (excluding push rod motor
DC wireless controller (no switching power supply

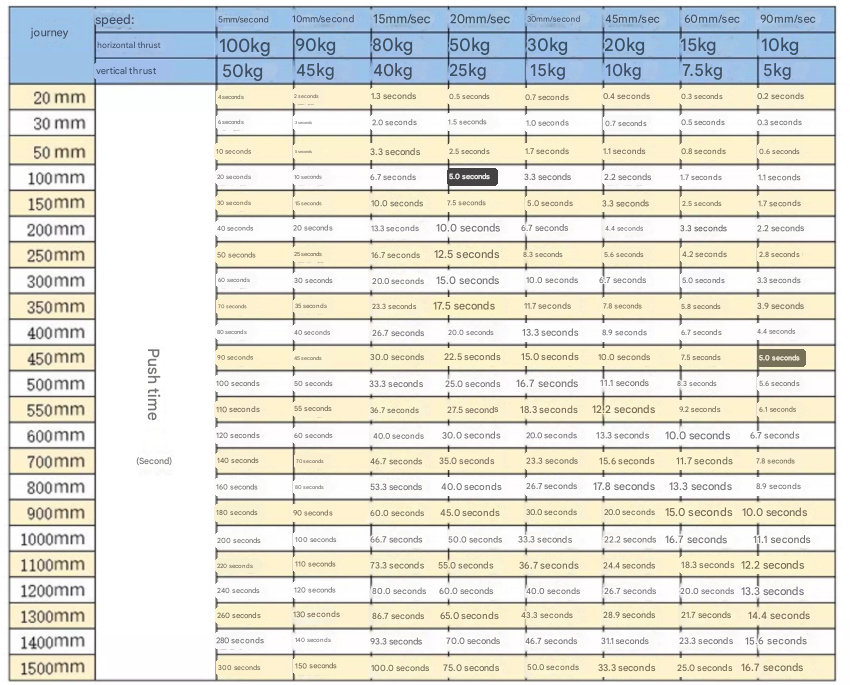

Speed torque selection
5MM/s 1000N【100KG
10MM/s 900N【90KG
15MM/s 700N【70KG
20MM/s 500N【50KG
30MM/s 300N【30KG
45MM/s 200N【20KG
90MM/sec 100N【10KG
65MM/S 150N【15KG
DC voltage selection:
Power supply DC12V
Power supply DC24V
DC electric push rod motor webpage：
https://www.xdmotor.tech/index.php?c=article&id=1554

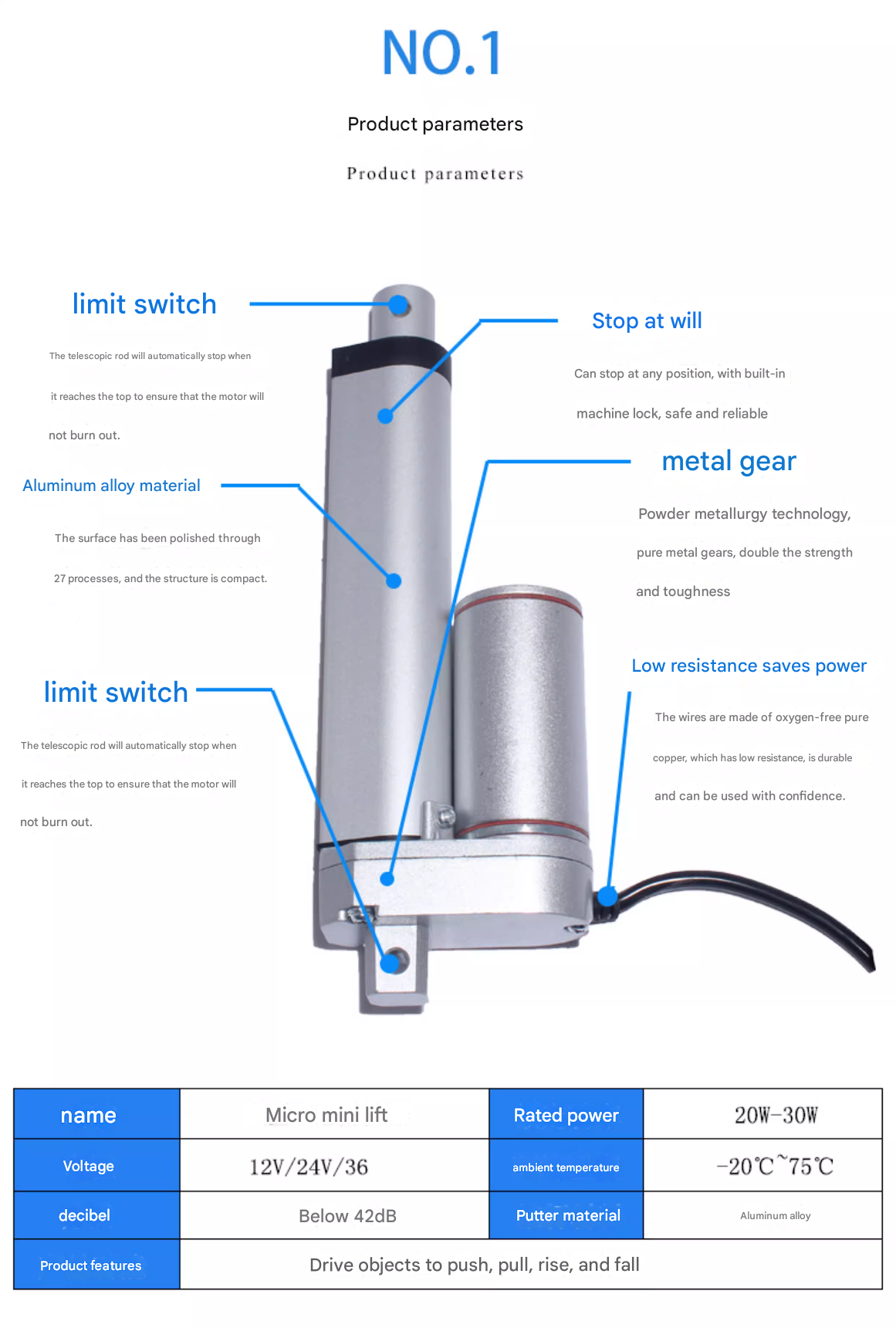

Rated Power: 20W-30W
Voltage: 12V, 24V, 36V
Ambient Temperature: -20°C to +75°C (-40°C antifreeze can be added upon request)
Protection Rating: IP54
Decibel Level: Less than 42dB
Lever Material: Aluminum Alloy
Function: Push, pull, raise, and lower objects
Notes
1. The lever is driven by a DC motor and a screw drive. The telescopic rod only extends and retracts, not rotates. 2. The lever is under warranty for one year and cannot be returned unless there are quality issues. Unauthorized disassembly or assembly is prohibited.
