In what situations is a speed reducer needed for an electric motor?
Date：2026-05-05 Author：Shandong Xinda Motor Co., Ltd.
1. Gear reducers can achieve low speed and high torque.
In some applications, a relatively low speed is required, but a relatively high torque is needed. If the motor speed is controlled very low, low-speed operation is not optimal for some motors, especially stepper motors. We can use a gear reducer to solve this problem. The function of a gear reducer is to reduce the speed and increase the output torque.

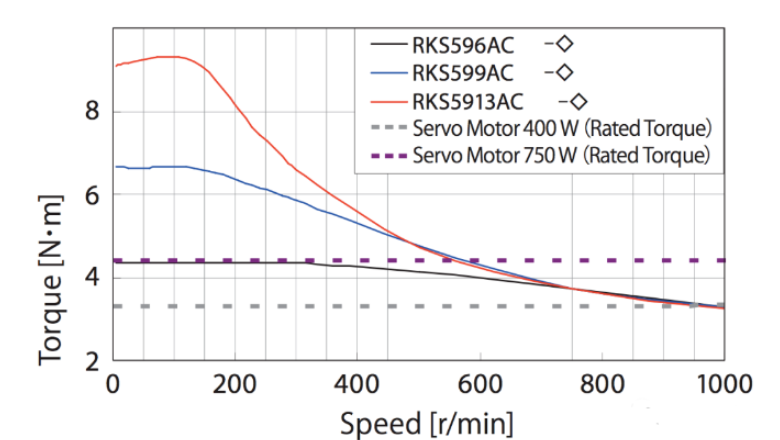

Speed and torque curve of stepper motor
2. Using a gearbox is more cost-effective when speed requirements are met.
Sometimes, the motor speed meets the requirements, but higher torque is needed. Method one is to choose a higher-power motor. However, this method isn't necessarily the most cost-effective, as higher-power motors are relatively more expensive. Method two is to use a gearbox. Using a gearbox can meet the operating speed requirements, increase output torque, and save cost and space, making the advantages of using a gearbox obvious.
3. Using a gearbox has a certain effect on the motor.
Because of the added speed reducer, the load acts directly on the reducer, significantly reducing the force on the motor (1/reduction ratio), thus protecting the motor. Especially under overload conditions, the load can cause considerable damage to the motor without a speed reducer.
Overload can damage the mechanism; if only the speed reducer fails, replacing it is more cost-effective. Direct connection between the motor and load can easily damage the motor under overload conditions, making motor replacement relatively expensive, while replacing the speed reducer is much cheaper. When selecting
a speed reducer, you can generally find a matching model based on the motor model, and then choose a suitable speed reducer based on parameters such as speed, torque, reduction ratio, installation method, and installation dimensions.
Speed reducers also come in high-precision and standard-precision versions; higher precision speed reducers are more expensive. A standard speed reducer might cost a few hundred yuan, while a precision speed reducer can cost thousands. Therefore, choose according to your specific needs.
