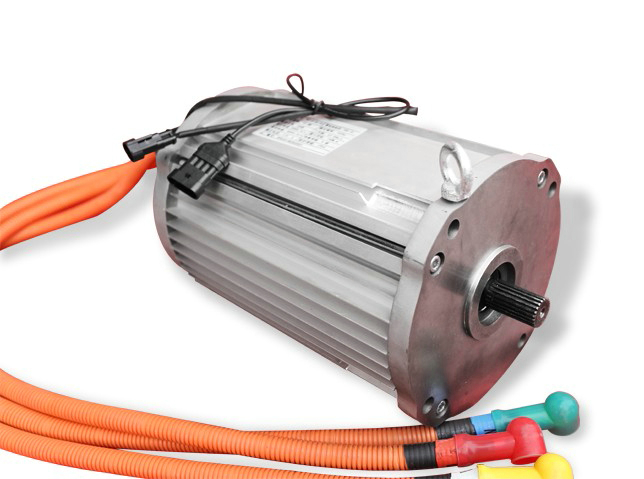

Wholesale ev Conversion Kit 20KW 96V Asynchronous AC Motor For Traction Motor for Electric Vehicle

date:2022-09-17

  • Product Details

Essential details


Warranty:3months-1year
Place of Origin:Shandong, China
Brand Name: XINDA MOTOR
Model Number:XD-XQY20-96-H9
Type:Asynchronous Motor
Phase:Three-phase
Protect Feature:Drip-proof
AC Voltage:96V
Efficiency:90
Product Name:AC asynchronous motor for EV
rated power:20KW
Rated torque (N.m):63.7
Rated voltage:96V
Rated speed:3500r/min
Peak speed:6000r/min
Insulation class:H
Protection level:IP67
rated current:231A

Max. Power:40 kw


Products Description
rated power
20KW
Peak power
40KW
Rated voltage
96V
Rated torque (N.m)
63.7
Rated speed
3000
Peak speed
6000
Working system
S9
Insulation class
H
Protection level
IP67
Main scope of application
Low-speed electric passenger vehicles, logistics vehicles
SIGHTSEEING BUS MOTOR、GOLF CART MOTOR、ELECTRIC TRUCK MOTOR
1. Smooth and reliable. Joined with transaxle of vehicles with involute spline shaft,provide reliable and safe guarantee for vehicle. 2. Climbing ability. High starting torque, greater speed range and higher top speed, higher overload capability, which will supply big power for electric car and meet the climbing needs. 3.Long driving range of a single charge. Higher motor efficiency,provide the effectiveness 4. Durable in use,easy maintenance
