Product Details

Essential details

Place of Origin:Shandong, China
Brand Name: Xinda Motor
Model Number: XD-YBQ132-15-108
Type:Induction Motor
Frequency:102HZ
Phase:Three-phase
Protect Feature:Totally Enclosed
AC Voltage:108v
Efficiency:IE 1
Product Name:Electric Car Motor
Application:Electric Car Vehicle
Speed:3000rpm
Rated Power:13.5kw

Certification:ce

Packaging Details: Special exporting package, including wooden package , carton package and Fumigation wooden package .we take all possible measures to ensure that our products can be delivered to the customers all over the world.

Port: Qingdao or as required

Product Description

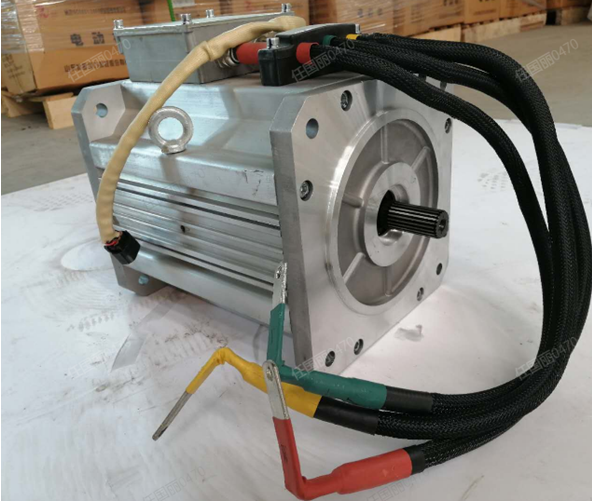

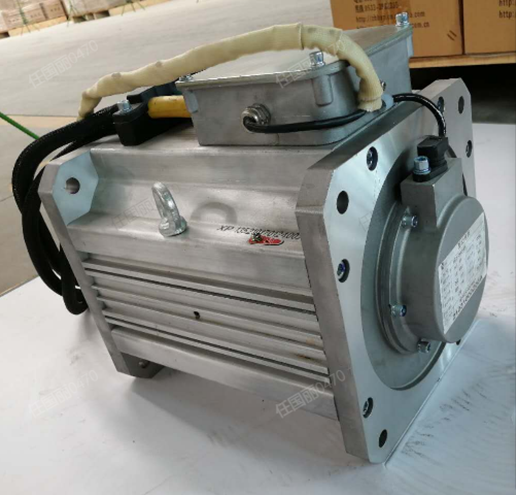

						13.5kw 108v AC three phase motor for conversion car


Coutinuous Power	13.5KW	Peak Current	6600r/min
Rated current	147A	Protection Grade	IP66
Rated Voltage	108V	Insulation Grade	H
Rated Torque	35.8N.M	Character of Service	S9
Peak Torque	140N.M	Number of Phases	Three Phase

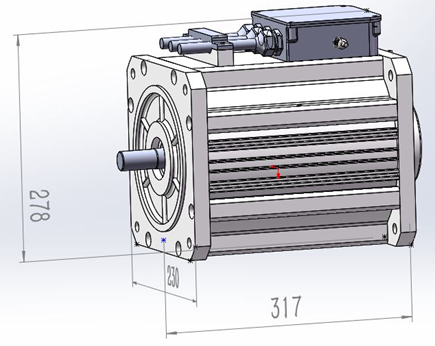

Product Drawing

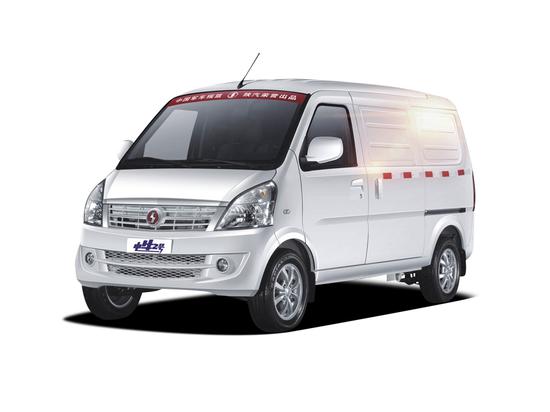

							Applicable model


Condition:

Body weight: 1053kg

Full load weight: 1350kg

Length: 3996 mm

Width: 1553 mm

Height: 1650 mm

Distance between two axles: 2600mm

Distance from ground: 140mm

Drive: The front drive

Tire diameter: 15inches (175/65, R 14)

Ratio: 6.7(Recommended)
Vehicle requirements:

Speed range: 80~100km/h

Motor torque for flat road operation: 6.9N.m

Required torque for climbing: 123.8N.m

Climbing slope: 20 degree
 Calculation result . Full load maximum speed requirement: 90km/h:

								Calculation conclusion: When our 13.5kw108V AC asynchronous motor is used，on the transmission ratio of 8, the vehicle will get the maximum running speed of at least 90km/h .When the gradient percentage is 11.4% (20° slope Angle), the minimum running speed of 20km/h can be obtained(This calculation is an estimation and judgment method, which does not promise absolute accuracy. The final conclusion depends on the test results of all parts after assembly.)

Continuous mileage on a single charge：100km

Battery recommended：18kwh/108V

The charging time：6-8 hours

Optional Products

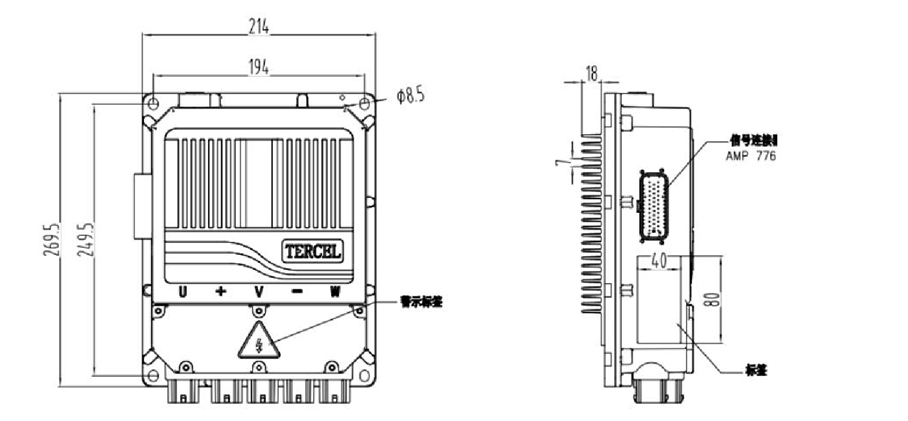

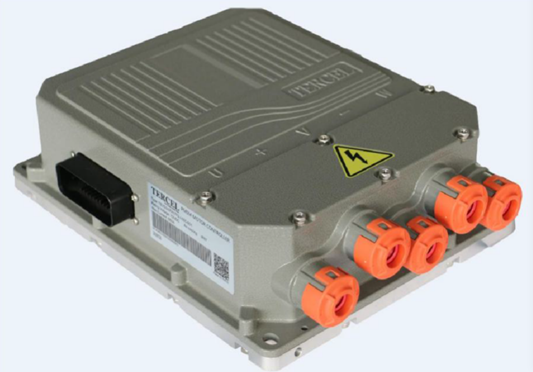

Controller
Rated output current	125A
Peak output current	430A
Rated input voltage	108VDC
Overall dimensions	LWH(mm)270213104
Weight	5.4kg
Cooling way	Natural cooling
Working temperature	-40~85℃
Storage temperature	-40~105℃
Protection grade	IP67

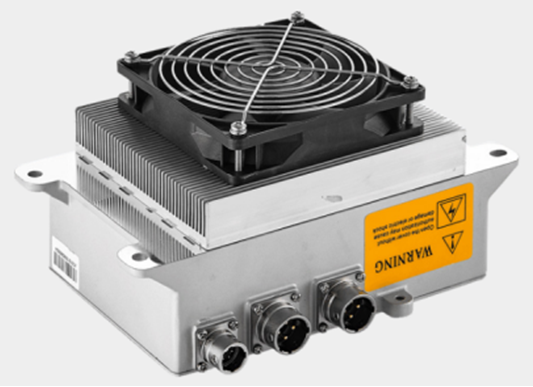

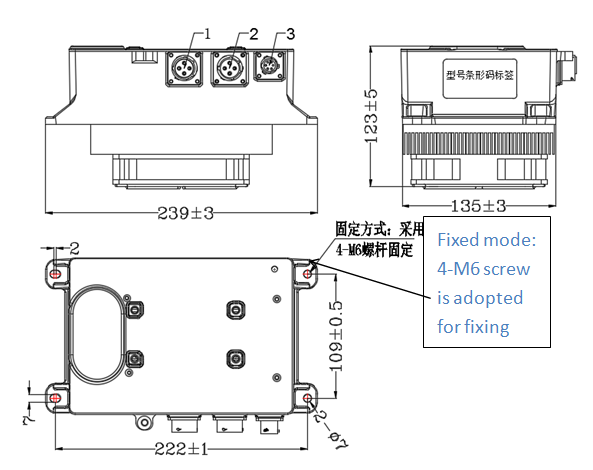

Charger

							The product has the advantages of high efficiency, small size, high stability, long life, etc. The whole potting and sealing

process has the characteristics of up to IP67 protection level, which can work safely, high reliability and complete protection

functions under the condition of short time immersion. It is an ideal power source for electric vehicle charging.The built-in

thermal sensor of the charger can work reliably at -35℃ -+ 85℃, with overheating protection function and automatic recovery.

Input voltage range	AC 90～265V
Input current	16A
Output rated voltage	108V
Output voltage range	34～132VDC
Maximum output current	32A
The power coefficient	≥0.99 More than half cargo
Frequency	45-65Hz
The output power	3300W@220VAC 1600W@110VAC
Input overvoltage protection	AC270±5V
Input undervoltage protection	AC85±5V

DC converter
Rated power	1KW
Peak power	1.2KW
Input rated voltage	DC108V
The output voltage	14V±1%
Output current	72A
Protection level	IP67
Operating temperature	- 40℃～60℃
Protection function	Output over voltage, under voltage, short circuit protection, input reverse connection protection, over
Product size	278(length)x116(width)x74(height)

Our Company

							Xinda Motor is a professional manufacturer of the driving kit for electric vehicles, which includes the electric motors, transaxles，controllers, battery chargers for. Widely used on electric golf carts, sightseeing vehicles, electric 4 wheelers, beach vehicles, mini-trains, cleaning equipment, and other industrial electric vehicles.

Meanwhile, we are able to design, test and produce proper motors and other parts to suit your specific application.

Besides producing a range of electric car parts, we are able to supply solutions for your electric vehicles.

							     We develop and sell driving kit including motor, controller, and axle for our customers for 40 plus countries and regions all over the world. Meanwhile, we are pleased as well to provide the optional parts, such as charger, dashboard, DC-DC converter, steering system, suspension,chassis, tires, and battery pack per request on your behalf.
