Structural principle and characteristics of planetary reducer for miniature geared motor

Date:2023-01-24   Author:XINDA MOTOR

Miniature geared motors are driving equipment with high torque and low speed, and are often used in various fields with large loads, such as electronic locks, safes, toy cars, electric fixtures, smart curtains, etc. Micro geared motor reducers are divided into different types according to different applications. Gear reducer, planetary reducer, worm reducer. Both the gear reducer and the worm reducer reduce the output speed and increase the output torque through the meshing of the small gear and the large gear. The following is a brief description of the structural principle and characteristics of the planetary reducer by XINDA Micro Motor.


The planetary reducer of miniature gear motor is a precision reducer with high efficiency and applicability. Planetary reducer can be divided into small power reducer and high power reducer. The structure of planetary reducer is planetary gear, sun gear, inner ring gear, Composed of a planetary carrier, combined with a drive motor, it can achieve low speed and high torque output.



Working principle of planetary reducer



The planetary reducer is tightly combined on the gear housing through the inner gear ring. In the center of the gear ring, there is a sun gear assembled by the output shaft of the drive motor. Between the two is a set of planetary gear stages composed of three gears combined on the tray. The gear is supported by the output shaft, the sun gear and the inner gear ring. When the sun gear rotates, it will drive the planetary gear to self-select and revolve along the center along the track of the inner gear ring. The rotation of the planetary gear drives the output shaft of the tray to output power.


1) The number of planetary gear stages, that is, the number of gear sets, for some applications with large loads, a set of planetary gears cannot meet the requirements of the drive ratio, so it is necessary to increase the number of gear sets to meet the larger drive ratio requirements, but as the number of gear stages increases , the length of the reducer will be longer, and the work efficiency will be lost more.



2) Fix the output end, and rotate the input end clockwise and counterclockwise, so that when the input end generates rated torque +-2% torque, there is a slight angular displacement at the input end of the reducer, which is the backlash of the planetary reducer , linked to precision.

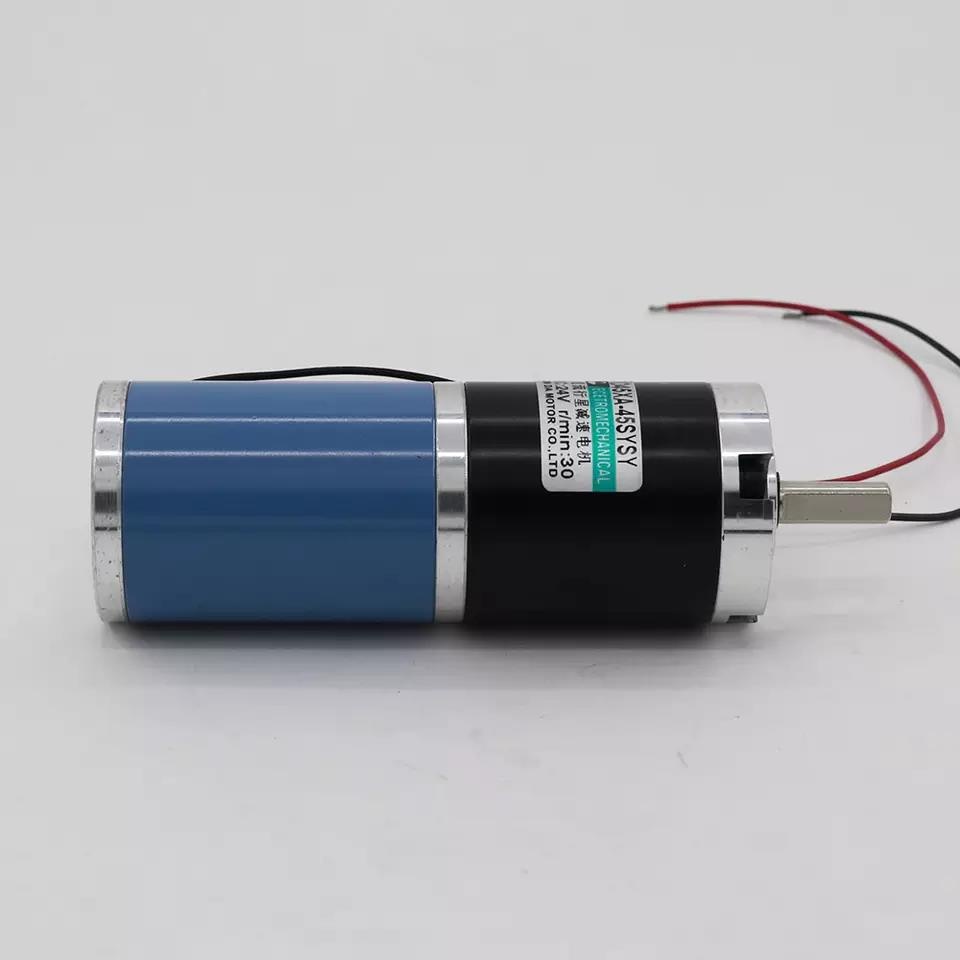

Features of miniature planetary gear motor


1) The rotation fluctuation is small, and the speed adjustment is fast;


2) Small size and light weight, plastic gears and metal gears can be used, and the diameter of the asteroid reducer is about 3 mm;


3) With the same parameter gear reducer, the driving precision of the planetary reducer is greater;


4) Higher drive efficiency;


5) The operation is stable and the speed fluctuation is small;


6) Lower noise and greater torque.


The above is the structural principle and characteristics of the planetary reducer. For more information about the micro DC motor, please continue to pay attention to XINDA Micro Motor.
